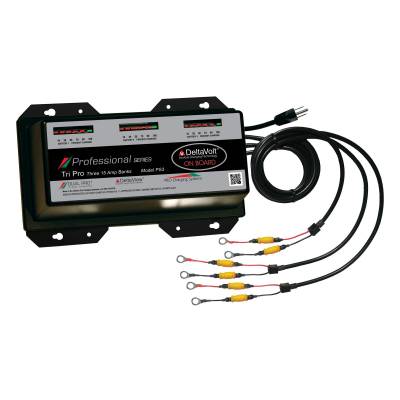

MADE IN USAProduct Specifications for Dual Pro Professional Series 3-Bank 12 Volt 45 Amp Charger - Three 15 Amp Banks (220VAC)
| BM Part #: | ACC-PS-3-220V |
|---|---|
| Made In: | U.S.A. |
| Voltage: | 12/24/36 Volt |
| Charging Rate: | 45 Amp (15 Amp Per Bank) |
| Input Voltage: | 220 VAC |
| Length: | 13.00" |
| Width: | 8.25" |
| Height: | 6.00" |
| Shipping Weight: | 25.00Lbs |
| Warranty: | 3 Years Factory Direct |
| Product Manual: | Download |
| Datasheet: | Download |
- This item is not eligible for free shipping.
- Made in the USA. Why it matters:
- Superior craftmanship; rigorously tested; high-quality parts.
- Please verify dimensions, voltage, & amps before ordering.
- Approved for use on these Odyssey batteries: PC1350, PC2150-S, PC2150-T, 31R-PC2150, 31M-PC2150, PC2250-ST, 49-950, 31-925
- All three sets of leads will need to be attached to one battery to charge these batteries.
Product Description
220VAC version of Dual Pro's PS3 battery charger.
Battery Charging System Designed for Use On Land and in Fresh and Salt Water
The Professional Series chargers have set the standard in the marine industry for more than a decade. They are known as the safest, most reliable, and best performing battery chargers in the industry. Across a broad range of fishing and recreational boats, Pro Charging Systems keeps boaters on the water longer while extending the life of their batteries. Dual ProTM charging technology has been and continues to be the choice of over 50 boat manufacturers and professional fishermen on the B.A.S.S. and FLW tournament circuit.
- The "Green" Charger: Totally "Repairable" Not a Throw-Away
- Unmatched Performance, Reliability, Safety and Quality
- TROUBLE FREE - Just Plug It In and Forget It!
- Join Over 750,000 of Our Satisfied Customers!
- Fully Automatic and Totally Waterproof
- May be used in many types of sporting applications including: Inland Watercraft, Salt Water Watercraft, Motorcycles, Golf Carts, Utility Vehicles...
Product Features
- Connector: Ring Terminals.
- Approved for Wet Cell and Sealed Lead Acid AGM batteries
- Models also available for Gelled Electrolyte batteries
- Designed for use in fresh and saltwater
- Dependable, rugged construction
- Waterproof
- Independent outputs
- Fully automatic / multi stage charging
- Zero spark technology
- Battery maintenance mode
- On-board diagnostic codes
- Temperature compensated
- Advanced microprocessor controlled
- Battery systems available: 12V - 48V
- LED lights indicate the state of charge
- Reverse polarity protected
- No installation restrictions
- FCC Parts A & B interference compliant
- DC charge cables = 5ft. AC power cord = 3ft.
- Approved and meets ISO 8846 Marine standards
- Ignition protected (US Coast Guard 33 CFR 183.410
Tech Tip: Using A Multi-Bank Charger
Each bank of this charger is 15 amps. Combined, this is an output of 45 amps (3 banks of 15 amps each). This is commonly used in two ways:
- Connect each bank to separate battery systems, charging both by 15 amps each.
- Connect both amps to the same battery system, charging it by 45 amps total.
