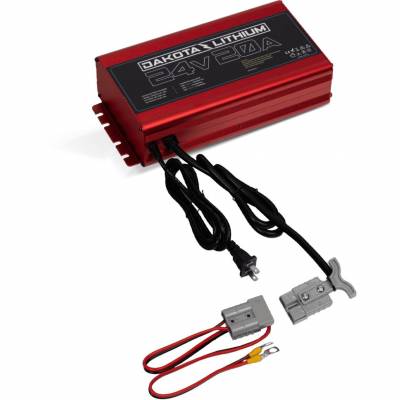

Product Specifications for Dakota Lithium 24 Volt, 20 Amp Waterproof Lithium Onboard Battery Charger
| BM Part #: | DLCH-24V20A-OB |
|---|---|
| Brand: | Dakota Lithium |
| Voltage: | 24 Volt |
| Charging Rate: | 20 Amp |
| Input Voltage: | 100-240 VAC, 50/60HZ |
| Length: | 11.26" |
| Width: | 5.71" |
| Height: | 2.87" |
| Shipping Weight: | 4.00Lbs |
| Warranty: | 1 Year (Factory Direct) |
- Great for 24V batteries from 60 to 110 Ah.
- Waterproof Rating IP67.
- Smart BMS Communication: Charger will restart or "wake up" a Dakota Lithium BMS that has turned off a battery due to short circuit or excessive amp draw. Simply connect the charger to the battery to initiate a restart.
- Terminal Connections: Anderson connections make it easy to connect your charger to the battery. Install the ring terminals using the bolts on your terminals. Bolt black to your black terminal. Red to your red terminal. Do not short circuit. Then connect the charger via the Anderson plug when you need to charge. Red light on the charger will turn on when charging. Light turns green when the battery is full.
Product Description
This firehose of power is optimized to charge large 24V (volt) batteries FAST while ensuring a long battery lifespan, all-while being weather, water resistant, and ready for the harshest conditions. Our Dakota Lithium Chargers has been optimized for use with our lithium iron phosphate batteries (LiFePO4 or LFP). Not recommended for charging lead acid or SLA batteries, it is too powerful. Built in a high tensile aluminum case for rapid cooling, this charger is rated at 20A and is an upgrade for those of you who need to charge fast and play hard. All Dakota Lithium batteries should be charged using a LiFePO4 compatible charger like this one. SLA chargers will reduce the performance and lifespan of the battery. Included Anderson plug with ring terminals for safe & easy charging. Simply plug the charger into the Anderson plug, and remove when done.
