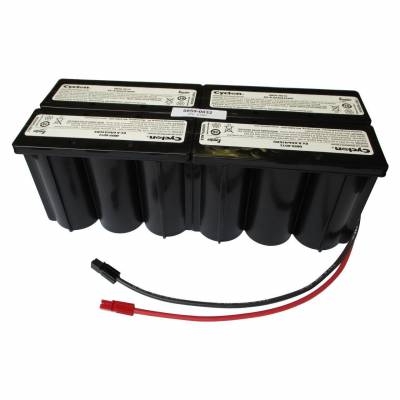

Product Specifications for Cooper Power Systems Form 4C Line Recloser Battery, 24V (CYCLON Monoblock)
| BM Part #: | 4X0859-0012W |
|---|---|
| Voltage: | 24 Volt |
| Capacity: | 8000 mAh |
| Energy Capacity: | 192 Wh |
| Type: | Sealed Lead Acid |
| Length: | 10.95" |
| Width: | 4.22" |
| Height: | 4.00" |
| Shipping Weight: | 14.00Lbs |
| Warranty: | 1 Year |
- Direct Drop-In Replacement: Fits Cooper Power Systems Form 4C line reclosers with no modifications, adapters, or guesswork required.
- 24V / 8.0Ah Sealed Lead Acid: Delivers the voltage and capacity your recloser control needs to operate reliably when AC power is unavailable.
- Maintenance-Free Design: Sealed chemistry means no water refills, no venting concerns, and no ongoing upkeep.
- Wire Lead Connector: Designed for straightforward field installation, so technicians can swap and restore quickly.
- Wide Model Compatibility: Also fits Form 4, 4A, 4D, Form 5, and Form 6 reclosers from Cooper Power Systems, McGraw Edison, and Kyle.
- OEM Cross-Reference: Directly replaces part numbers I04B25708, KME4-215, and KME4215.
Product Description
Line reclosers are some of the hardest-working equipment on the electrical grid. Mounted on utility poles, they automatically detect faults on power lines — a fallen branch, a wildlife contact, a momentary surge — trip open to protect the circuit, then reclose moments later to restore power if the fault has cleared. The battery inside the recloser control is what makes all of that possible when AC power isn't available. When it fails, so does the recloser's ability to respond.
This 24V sealed lead acid battery is a direct, drop-in replacement for the Cooper Power Systems Form 4C line recloser. It also fits several other models across the Form 4 family and beyond, making it a smart stocking choice for utility maintenance crews managing multiple recloser types across a service territory.
Built for the Application
The battery delivers 24 volts and 8.0Ah of capacity in a sealed lead acid design — no maintenance, no water refills, and no venting concerns in the field. The wire lead connector simplifies installation for technicians who need to work quickly and get the unit back online. Sized at 10.95" x 4.22" x 4.00" and weighing 12.46 lbs, it fits the Form 4C control housing as designed, with no modifications or adapters needed.
Compatible Recloser Models
This battery is a verified fit for the following Cooper Power Systems line recloser models, also sold under the McGraw Edison and Kyle brand names:
- Form 4, Form 4A, Form 4C, Form 4D
- Form 5, Form 5 (Standard Capacity)
- Form 6, Form 6 (Pole Mount), Form 6 (Standard Capacity)
It directly replaces OEM part numbers I04B25708, KME4-215, and KME4215.
Keep Your Grid Running
A recloser with a dead battery can't protect your line or restore power to customers — and the fix often comes down to something as straightforward as a fresh replacement. Keeping this battery on hand means your crew is never waiting on a part when it counts most.
Frequently Asked Questions
What recloser models is this battery compatible with?
A: This battery fits the Cooper Power Systems Form 4, Form 4A, Form 4C, Form 4D, Form 5, Form 5 (Standard Capacity), Form 6, Form 6 (Pole Mount), and Form 6 (Standard Capacity) line reclosers. These models are also sold under the McGraw Edison and Kyle brand names.
What OEM part numbers does this battery replace?
A: It is a direct replacement for Cooper Power Systems part numbers I04B25708, KME4-215, and KME4215.
Does this battery require any maintenance?
A: No. The sealed lead acid design is completely maintenance-free — there's no need to add water or manage venting, making it a practical choice for field use.
What are the dimensions and weight of this battery?
A: The battery measures 10.95" x 4.22" x 4.00" and weighs 12.46 lbs. It is sized to fit the Form 4C recloser control housing without any modifications.
What type of connector does this battery use?
A: It uses a wire lead connector, consistent with the original equipment design for these Cooper Power Systems reclosers.
