1/2 AA Lithium Cell With PC Pins for Memory Support and Industrial Applications
Item #: COMP-4-3R-SAFT |
Temporarily Unavailable
Be the first to Write a Review
Specs
Product Specifications for 1/2 AA Lithium Cell With PC Pins for Memory Support and Industrial Applications
Specifications:
| BM Part #: | COMP-4-3R-SAFT |
|---|---|
| Voltage: | 3.6 Volt |
| Capacity: | 1200 mAh |
| Type: | Lithium |
| Height: | 1.00" (25.4 mm) |
| Diameter: | 0.6" (15.24 mm) |
| Shipping Weight: | 0.10Lbs (1.6 oz) |
| Warranty: | 60 Day Return |
Description
Product Description

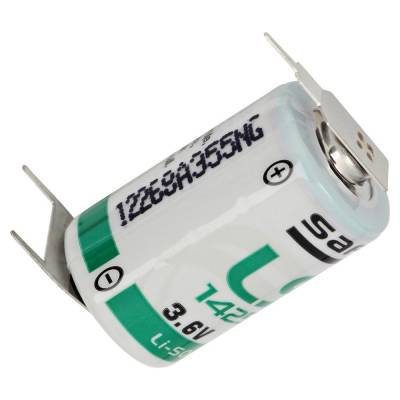

1/2 AA size Lithium Thionyl Chloride Cell With PC Pins. This battery has 2 pins on the negative (-) side and 1 pin with 10mm spacing on the positive (+) side for soldering to a board.
High energy, high reliability 3.6 volt power source.
Excellent memory backup power source.
Low self discharge rate gives this cell a 10 year shelf life.
Stable voltage and broad temperature range (-60° to +85°C).
Replaces
Cross Reference & Compatibility
The 1/2 AA Lithium Cell With PC Pins for Memory Support and Industrial Applications has been cross-referenced to be compatible with or replace these OEM part numbers and models:
Olympus CV100
Saft LS14250 3PF
Saft LS14250-3PFRP
Saft LS14250/3PF
Saft SL750-PT
