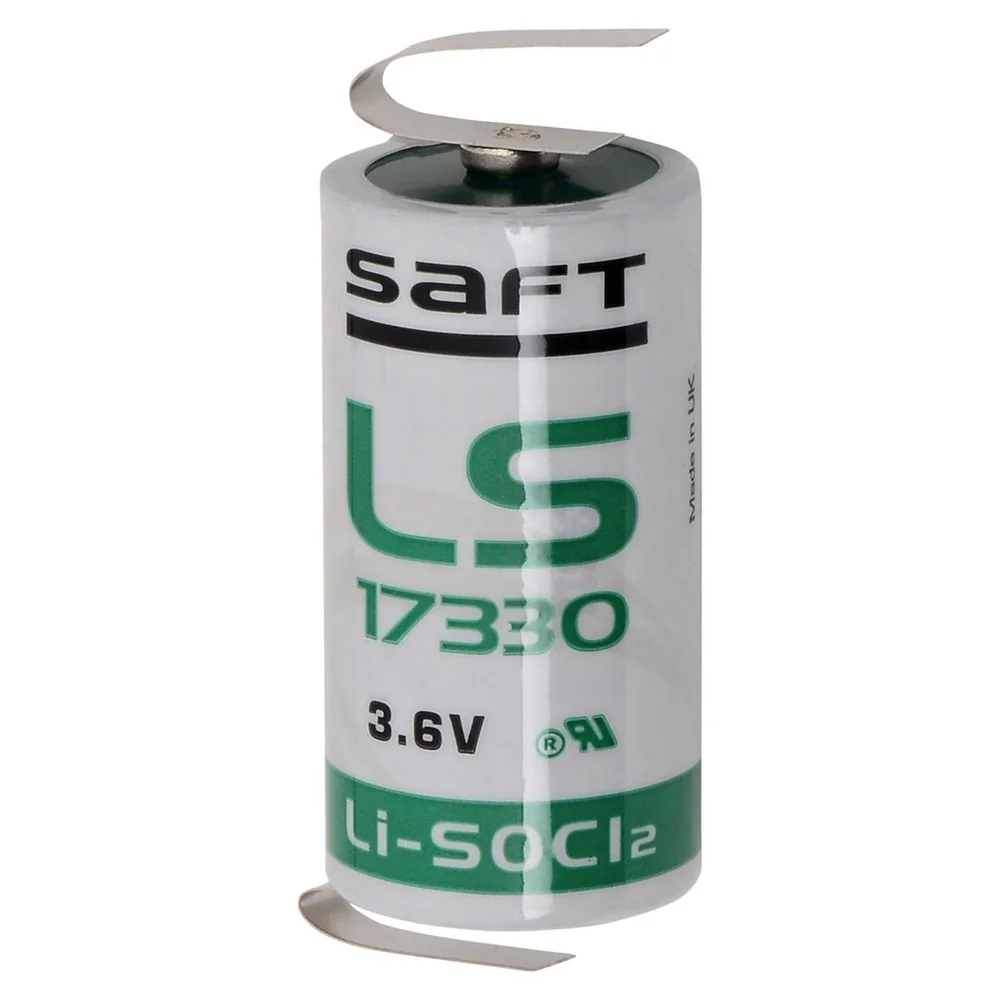

Product Specifications for Saft LS17330-CNR Lithium Battery 3.6V 2000mAh With Solder Tabs
| BM Part #: | COMP-29-SAFT-1 |
|---|---|
| Voltage: | 3.6 Volt |
| Capacity: | 2000 mAh |
| Type: | Li-SOCl2 |
| Length: | 1.3" |
| Diameter: | 0.7" |
| Shipping Weight: | 0.20Lbs (3.2 oz) |
| Warranty: | 60 Day Return |
- 3.6V Lithium Power: Delivers steady voltage to keep sensitive electronics running reliably.
- 2000mAh Capacity: Packs plenty of energy into one cell for long run times between replacements.
- Solder Tabs: Attach directly to your circuit board or wiring for a secure, solid connection.
- Compact 2/3A Size: At 0.7 x 1.3 inches and 0.6 oz, it fits tight spaces easily.
- Wide Temperature Range: Performs in extreme conditions from -76°F to 185°F.
Product Description
Keep Your Meter or Alarm Running Without Constant Battery Swaps
Are you tired of replacing batteries in hard-to-reach equipment? The Saft LS17330-CNR is a dependable lithium cell made for devices that need to run for the long haul.
If your device was built for a tabbed battery, this is the style you need. No adapters or guesswork required.
It's a popular choice for:
- Utility and automatic meter reading
- Alarms and security devices
- Tollgate systems
- Memory backup
Important: This is a non-rechargeable battery. Never place it in a charger.
Ready to get your equipment back to work? Add the Saft LS17330-CNR to your cart today.
Frequently Asked Questions
Is the Saft LS17330-CNR rechargeable?
A: No. This is a single-use (primary) lithium battery. Charging it can cause overheating or damage, so never use a charger with it.
How do I know if this is the right replacement for my device?
A: Check your old battery or device manual for LS17330, 2/3A size, 3.6V and solder tabs. Saft also makes this cell with axial leads and pins, so match the termination style before ordering.
How do I install a battery with solder tabs?
A: The tabs are meant to be soldered to a circuit board or wire leads. Match the positive and negative terminals to your device, and heat the tabs briefly so the cell doesn't get hot. If you're unsure, ask a qualified technician.
Can I use this in place of a 3V lithium battery?
A: No. This battery is rated at 3.6V, which is higher than a 3V cell. Use it only if your device calls for 3.6V.
Cross Reference & Compatibility
- Maxell ER17/33
- Maxell ER17/33#5TC
- Maxell ER17335
- Saft LS17330
- Saft LST17330
- Saft T32/8AA
