Product Specifications for Charger for Rechargeable Coin Cell LIR2450
| BM Part #: | CH-UNCE001-2450 |
|---|---|
| Type: | Li-Ion |
| Battery Size: | CR2450 |
| Length: | 3.5" |
| Width: | 2.4" |
| Height: | 1.0" |
| Shipping Weight: | 0.70Lbs (11.2 oz) |
| Warranty: | 1 Year |
| Product Manual: | Download |
- With socket clips, this charger secures your rechargeable LIR2450 coin cells in place.
- Safe and reliable: The power is automatically cut off when the batteries are fully charged.
- Caution: Must charge two coin cells together.
- Batteries are charged positive side down; must be plugged into a wall outlet.
- Note: Batteries are supplied with a plastic insulator on the outer rim which must be removed before charging.
- Only compatible with the rechargeable LIR2450 battery.
Product Description

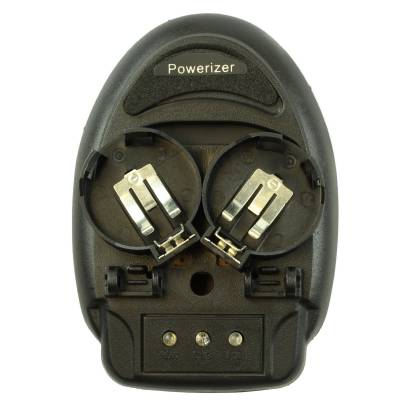

This smart charger is designed to fully recharge your Li-Ion coin cell batteries. In the charging sockets, special clips help keep the batteries in place throughout the charging process.
With its safe and reliable design, the charger will automatically cut off power to the batteries when they are fully charged. This prevents premature wear of the cells. The charger features easy to read LED lights that tell you the charge status of your batteries.
Technical Specification:
- Input: 110-240V AC input 50/60Hz
- Charging voltage: 4.2 +/- 0.1 VDC
- Charging current: 150mA +/- 50mA
- Built-In USB Plug for charging USB devices like cell phones, cameras, and more.
- Output: 5.0VDC 400mA Max
- There are three LED indicators on this charger: Test, CHG (Charge), OK
- The battery polarity is being check when you see these LED lights:
- Test LED = Solid Red
- Charge LED = Off
- OK LED = Off
- While charging, the LED lights will be:
- Test LED = Solid Red
- Charge LED = Flashing Red
- OK LED = Off
- Once your batteries are fully charged, the LEDs will indicate:
- Test LED = Solid Red
- Charge LED = Off
- OK LED = Green
Charging Your LIR2450 Batteries
To protect the batteries, the LIR2450 rechargeable batteries are supplied with a plastic insulator on the outer rim. This insulator must be removed before charging.
This charger is designed to charge two (2) batteries together. You must always charge two batteries at the same time when using this charger.
