Product Specifications for Charger for Rechargeable Coin Cell LIR2032 with 2 Batteries
| BM Part #: | LIR2032-KIT |
|---|---|
| Voltage: | 3.6 Volt |
| Capacity: | 40 mAh |
| Type: | Li-Ion |
| Battery Size: | CR2032 |
| Length: | 2.5" |
| Width: | 3.25" |
| Height: | 0.63" |
| Shipping Weight: | 0.70Lbs (11.2 oz) |
| Warranty: | 1 Year |
- Two (2) Rechargeable CR2032 Li-Ion batteries included.
- Caution: Must charge two coin cells together.
- Note: Batteries are supplied with a plastic insulator on the outer rim which must be removed before charging.
- With socket clips, this charger secures your rechargeable LIR2032 coin cells in place.
- Only compatible with the rechargeable LIR2032 battery.
- Safe and reliable: The power is automatically cut off when the batteries are fully charged.
Product Description
Package Includes:
- 1x CH-UNCE001-2032 Charger
- 2x LIR2032 Batteries

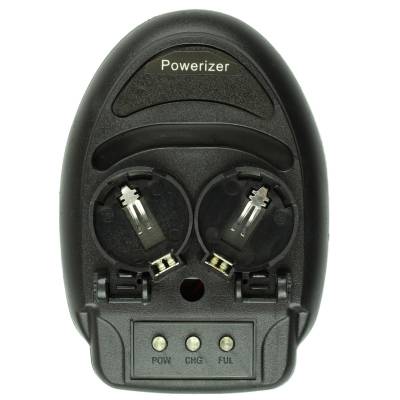

This smart charger is designed to fully recharge your Li-Ion coin cell batteries. In the charging sockets, special clips help keep the batteries in place throughout the charging process.
With its safe and reliable design, the charger will automatically cut off power to the batteries when they are fully charged. This prevents premature wear of the cells. The charger features easy to read LED lights that tell you the charge status of your batteries.
Technical Specification:
- Input: 110-240V AC input 50Hz < 50mA USA AC plug.
- Charging voltage: 4.2 +/- 0.1 Vdc
- Charging current: 150mA +/- 50mA
- There are three LED indicators on this charger: Test, CH, OK.
- The battery polarity is being checked when you see these LED lights:
- Test LED = "Solid Red"
- CH LED= "Off"
- OK LED = "Off"
- While charging, the LED lights will be:
- Test LED = "Solid Red"
- CH LED= "Flashing Red"
- OK LED = "Off"
- Once your batteries are fully charged, the LEDs will indicate:
- Test LED = "Solid Red"
- CH LED = "Off"
- OK LED = "Green"
- Estimate Charging time: 1 hour
- Charger will automatically cut off power when the batteries are fully charged.
Tech Tip: Charging Your LIR2032 Batteries
To protect the batteries, the LIR2032 rechargeable batteries are supplied with a plastic insulator on the outer rim. This insulator must be removed before charging.
This charger is designed to charge two (2) batteries together. You must always charge two batteries at the same time when using this charger.
