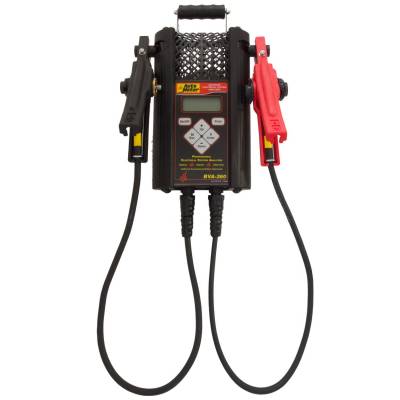

AutoMeter BVA-260 Professional Grade Intelligent Hand-Held Electrical System Analyzer - 6/12 Volt
Item #: BVA-260   |    In Stock
Be the first to Write a Review

zoom in

AutoMeter BVA-260 Professional Grade Intelligent Hand-Held Electrical System Analyzer - 6/12 Volt

Item #: BVA-260   |  In Stock
Be the first to Write a Review

Reg. Price: $1,857.95
SALE Price: $1,707.87
Free Shipping! Free Shipping

Price: $1,707.87

Best Value
Free Shipping
1 Year Warranty
Brand New
100% Compatibility
Secure Transaction

Product Specifications for AutoMeter BVA-260 Professional Grade Intelligent Hand-Held Electrical System Analyzer - 6/12 Volt

BM Part #: BVA-260
Voltage: 6/12 Volt
Length: 5.88"
Width: 9.5"
Height: 1.88"
Shipping Weight: 8.00Lbs
Warranty: 1 Year
Product Manual: Download
Load Test Capacity 120 Amp
Battery Sizes 100 - 1600 CCA
Leads Load Amp-2.5 ft., 6 Gauge
  • Tests 6V And 12V Flooded And AGM Batteries Rated 100-1600 CCA in 82 seconds.
  • Tests Starting/Charging Circuits/Discharged Batteries/Bad Cells.
  • Automatically Stores Results Of Last 150 Completed Tests.
  • Wirelessly Communicates To Optional Test Results Printer.
  • Requires Only A Single Technician.
  • English And Spanish Language Menus/Test Results.
  • Measures Alternator Current Output/Voltage Regulation.
  • Measures Diode Ripple Delivering A Pass/Fail Result.
  • Easily Upgraded.
  • Advanced Digital Pulse Load Technology.
  • 16 Gauge; 20 in. Leads w/Professional Grade Clamps.
  • Intuitive Menu Driven Operation.

Product Description

Free Standard Shipping!

Order today and receive free standard shipping on your AutoMeter BVA-260 Professional Grade Intelligent Hand-Held Electrical System Analyzer - 6/12 Volt. Only valid in the contiguous 48 states and not valid with any other offer.

One of the most technologically advanced handheld testers currently available!

Tthe BVA-260 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load™ technology to deliver a BCI compliant true load test, the BVA-260 can precisely diagnose the battery, starting and charging system in under 82 seconds. This unit is AGM optimized for compatibility with nearly all battery types. This adds up to a tester that in many cases delivers a superior test result to even traditional Carbon Pile testers. A convenient USB output allows test data to be displayed as an Excel™ spreadsheet for nearly unlimited storage capacity and data analysis as well as easy software updates.

Featuring a menu system revised to eliminate extra steps, nearly anyone can pick up the unit and use it right out of the box. Enhanced customer communications and "next step" messages aid in diagnosis and enhance credibility. The BVA-260 is also compatible via infrared with the AutoMeter PR-12 printer for easy communication with the customer.

  • Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
  • Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
  • Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes AutoMeter products easier to use and more accurate.
  • English and Spanish language menus and test results.
  • Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
  • Easily upgraded for future tech enhancements using AutoMeter's exclusive AMP Link software.
  • Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests.
  • True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test of the vehicle’s battery, starter, and charging system by the operator. This provides the ultimate in accurate high-speed battery testing when paired with AutoMeter’s Advanced Digital Pulse Load technology process, reducing the margin of operator error and workload during the diagnosis.
  • 16 Gauge, 20" leads with professional grade Bite Rite clamps that are easily field serviceable.
  • Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use.
