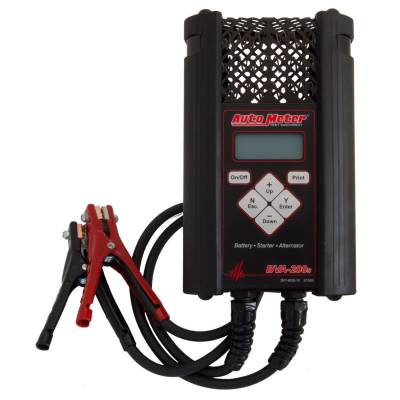

AutoMeter Hand Held Electrical System Analyzer For 6V & 12V Applications
Item #: ACC-BVA-200S |
Special Order: Ships in 4-7 Days
Be the first to Write a Review
Specs
Product Specifications for AutoMeter Hand Held Electrical System Analyzer For 6V & 12V Applications
Specifications:
| BM Part #: | ACC-BVA-200S |
|---|---|
| Length: | 5.88" |
| Width: | 9.5" |
| Height: | 1.88" |
| Shipping Weight: | 4.00Lbs |
| Warranty: | 1 Year (90 Days on Cables) |
| Product Manual: | Download |
| Load Test Capacity: | 120 Amp |
| Battery Sizes: | 100-1600 CCA |
| Memory: | Stores the last 150 tests |
| Leads: | Load Amp-2.5 ft., 6 ga. |
Features:
- Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
- Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
- Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell.
- English and Spanish language menus and test results.
- Charging system test results will measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
- Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allows technicians to rapidly measure a battery’s ability to provide the adequate cranking power necessary to start the vehicle.
- True-Load – This AutoMeter Analyzer is unique compared with other products on the market. It has the ability to apply a specific load (True-Load) directly through the tester connections allowing for a more rapid and accurate test.
- 6 Gauge, 20" leads with professional grade clamps that are easily field serviceable.
- Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use.
Description
Product Description
The BVA-200s is a durable hand held battery and electrical system tester with an on-board 120 amp load for heavy use in a professional shop environment. This tester comes with a rugged anodized aluminum housing, rubber hand grip, and 6 gauge leads with heavy duty clamps. Performs a complete electrical system test in 82 seconds!
Replaces
Cross Reference
The AutoMeter Hand Held Electrical System Analyzer For 6V & 12V Applications has been cross-referenced to be compatible with or replace these OEM part numbers and models:
BVA-200S
