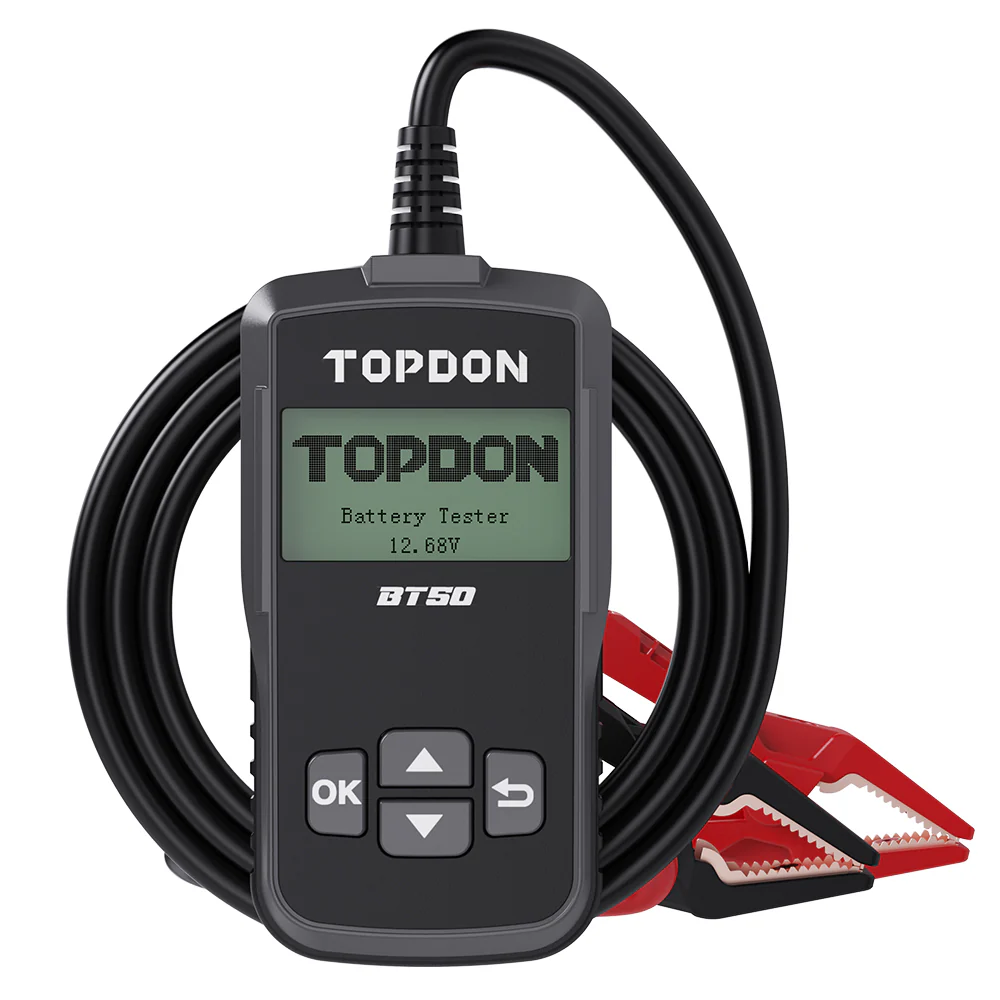

Product Specifications for TOPDON BT50 12V Battery, Cranking & Charging System Tester
| BM Part #: | BT50 |
|---|---|
| Voltage: | 12 Volt |
| Length: | 4.9" |
| Width: | 2.6" |
| Height: | 0.7" |
| Shipping Weight: | 3.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- BT500
- User Manual
- Complete 12V Battery Analysis: Measures State of Health (SOH), State of Charge (SOC), internal resistance, and actual CCA value using advanced conductance testing technology — delivering a fuller picture than voltage alone.
- Cranking and Charging System Tests: Checks starting voltage and crank time under load, then analyzes loaded voltage, unloaded voltage, and alternator ripple to identify both battery and charging system faults.
- Spark Elimination Technology: Built-in spark suppression reduces the risk of sparks during clamp connection, with reverse polarity protection providing an additional layer of safety for first-time users and experienced technicians alike.
- All 12V Lead-Acid Types, 10 Standards: Tests Flooded, AGM Flat Plate, AGM Spiral, Gel, and EFB batteries from 100–2,000 CCA across 10 international rating standards — in-vehicle or out-of-vehicle.
- Ultra-Compact at 4.9 × 2.6 × 0.7 Inches: The slimmest tester in the TOPDON lineup fits in a glovebox, a tool bag, or a jacket pocket — and powers directly from the vehicle through the test clamps, no charging required.
- 2-Inch Backlit Display: Clear, readable results in any lighting condition, with intuitive pass/fail verdicts displayed alongside detailed test data for fast, confident assessments.
Product Description
The TOPDON BT50 is a straightforward, budget-friendly battery and charging system tester built for everyday drivers and DIYers who want real diagnostic information without spending a lot. Compact enough to slip into a glovebox and simple enough to use with no prior experience, it gives you clear, reliable answers on battery health, starting performance, and charging system output — fast.
Battery Testing That Goes Beyond a Voltage Check
The BT50 uses advanced conductance testing technology to deliver a complete picture of your 12V battery's condition in seconds. Rather than just checking voltage — which can look normal even on a failing battery — it measures State of Health (SOH), State of Charge (SOC), internal resistance, and actual CCA value together. Internal resistance is one of the most reliable indicators of battery age and degradation, and having it on a tool at this price point is a genuine advantage. Results display clearly on screen alongside an intuitive GOOD, GOOD RECHARGE, RETEST AFTER CHARGING, BAD CELL, or REPLACE verdict so you always know exactly where you stand.
Cranking Test to Catch Starting Problems Before They Strand You
The BT50's cranking test measures starting voltage and crank time under real load conditions, giving you a data-backed look at whether your battery is delivering dependable power at startup. If a battery is beginning to struggle under the demands of starting — even before it fails entirely — the BT50 will show it. It's the kind of early warning that lets you replace a battery on a convenient day rather than a freezing one.
Charging System Test With Ripple Detection
Not every battery problem is a battery problem. The BT50's charging system test analyzes loaded voltage, unloaded voltage, and alternator ripple to determine whether the charging system is functioning correctly and keeping the battery properly topped up. Ripple detection is particularly useful for catching a failing alternator diode early — a fault that often drains batteries and causes hard-to-trace electrical issues before it becomes an obvious failure.
Spark Elimination for Safer Connections
The BT50 includes built-in spark elimination technology, which reduces the risk of sparks when connecting the clamps to battery terminals — a meaningful safety feature when you're working around a battery that may be gassing. Combined with reverse polarity protection, it makes the tool safe and confidence-inspiring to use even for someone picking up a battery tester for the first time.
Covers All 12V Lead-Acid Battery Types and 10 Standards
The BT50 tests all common 12V lead-acid chemistries — Flooded, AGM Flat Plate, AGM Spiral, Gel, and EFB — across a 100 to 2,000 CCA range. Ten international battery rating standards are supported (CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, and GB), so it works correctly regardless of where the battery was manufactured or how it's rated. Both in-vehicle and out-of-vehicle testing are supported.
Slim, Pocketable, and Powered by the Vehicle
At just 4.9 × 2.6 × 0.7 inches, the BT50 is the most compact tester in the TOPDON lineup — thin enough to sit flat in a glovebox or slide into a jacket pocket without taking up noticeable space. Like all TOPDON battery testers, it powers directly from the vehicle through the test clamps with no internal battery to charge or manage. A 2-inch backlit display delivers clear readings in bright or dim conditions alike. Available in 6 languages: English, Spanish, French, German, Italian, and Russian.
Frequently Asked Questions
How does the BT50 compare to the BT100?
A: The BT50 and BT100 share the same core testing capabilities — battery health, cranking, charging, and ripple tests — and both support all 12V lead-acid battery types and 10 international standards. The BT50 is smaller (4.9 × 2.6 × 0.7 inches vs. 5 × 3 × 1 inches), lighter, and priced lower, making it the better fit for casual use and glovebox storage. The BT100 steps up with a 2-year warranty (vs. 1 year on the BT50) and explicitly calls out its Data Review function for revisiting stored results. The BT50 is the right choice if you want essential, reliable testing at the most accessible price.
What does spark elimination technology do?
A: Spark elimination technology suppresses the small sparks that can occur when connecting test clamps to a battery under charge. Batteries — especially those that are overcharged or have been recently charged — can produce hydrogen gas that is ignitable by a spark. The BT50's spark suppression circuit reduces this risk, making it safer to connect in enclosed spaces or near a recently charged battery.
What does the BT50 actually measure and display?
A: The BT50 displays State of Health (SOH), State of Charge (SOC), actual CCA value, voltage, and internal resistance for battery tests. For the cranking test, it shows starting voltage and crank time. For the charging test, it displays loaded voltage, unloaded voltage, and ripple value — along with a clear pass or fail result for each test.
Does the BT50 test 24V systems?
A: No. The BT50 is designed for 12V systems only. For 24V battery and charging system testing — useful for commercial trucks, heavy equipment, and dual-battery setups — the TOPDON BT200 supports both 12V and 24V.
Can I test a battery that's still installed in the vehicle?
A: Yes. The BT50 supports both in-vehicle and out-of-vehicle battery testing. For the most accurate results, all electrical loads should be off before testing, and the engine should be off for the battery test. The engine should be running for the cranking and charging system tests.
Does the BT50 require an app or smartphone?
A: No. The BT50 is a fully standalone device with no Bluetooth, no app, and no pairing required. It powers directly from the vehicle and displays all results on its built-in 2-inch backlit screen.
What is included in the box?
A: The BT50 ships with the tester unit (with attached test clamps) and a user manual.
What is the warranty on the BT50?
A: The BT50 comes with a 1-year manufacturer's warranty.
