Product Specifications for TOPDON BT300P Battery, Cranking & Charging System Tester With Built-In Printer
| BM Part #: | BT300P |
|---|---|
| Voltage: | 12/24 Volt |
| Length: | 8.19" |
| Width: | 3.94" |
| Height: | 1.49" |
| Shipping Weight: | 5.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- BT300P
- User Manual
- Carrying Bag
- Printer Paper (3 rolls)
- Built-In Thermal Printer: Prints a complete, professional test report in 2–3 seconds — battery health, CCA, SOH, SOC, voltage, internal resistance, and verdict — ready to hand to a customer or attach to a work order. Three rolls of paper included.
- 99.5% Testing Accuracy: Advanced conductance testing delivers precise 12V battery results in about 10 seconds, with clear plain-language verdicts (Good Battery, Replace, Bad Cell, etc.) that require no interpretation.
- 12V and 24V Cranking and Charging Tests: Tests cranking and charging system performance on both 12V and 24V systems — covering passenger vehicles, commercial trucks, RVs, and dual-battery equipment.
- All Major Lead-Acid Types and 10 Standards: Compatible with Flooded, AGM Flat Plate, AGM Spiral, Gel, and EFB batteries across a 100–2,000 CCA range and 10 international rating standards.
- Spark-Free Premium Copper Clamps: Built-in spark and smoke suppression at the clamps plus reverse polarity protection for safe, confident connections — with a 31.5-inch cable for comfortable reach in most engine bays.
- Data Review and 2.4-Inch Color Display: Stores last test results in memory for quick review without retesting, with a bright color screen that reads clearly in any lighting condition and powers directly from the vehicle — no charging needed.
Product Description

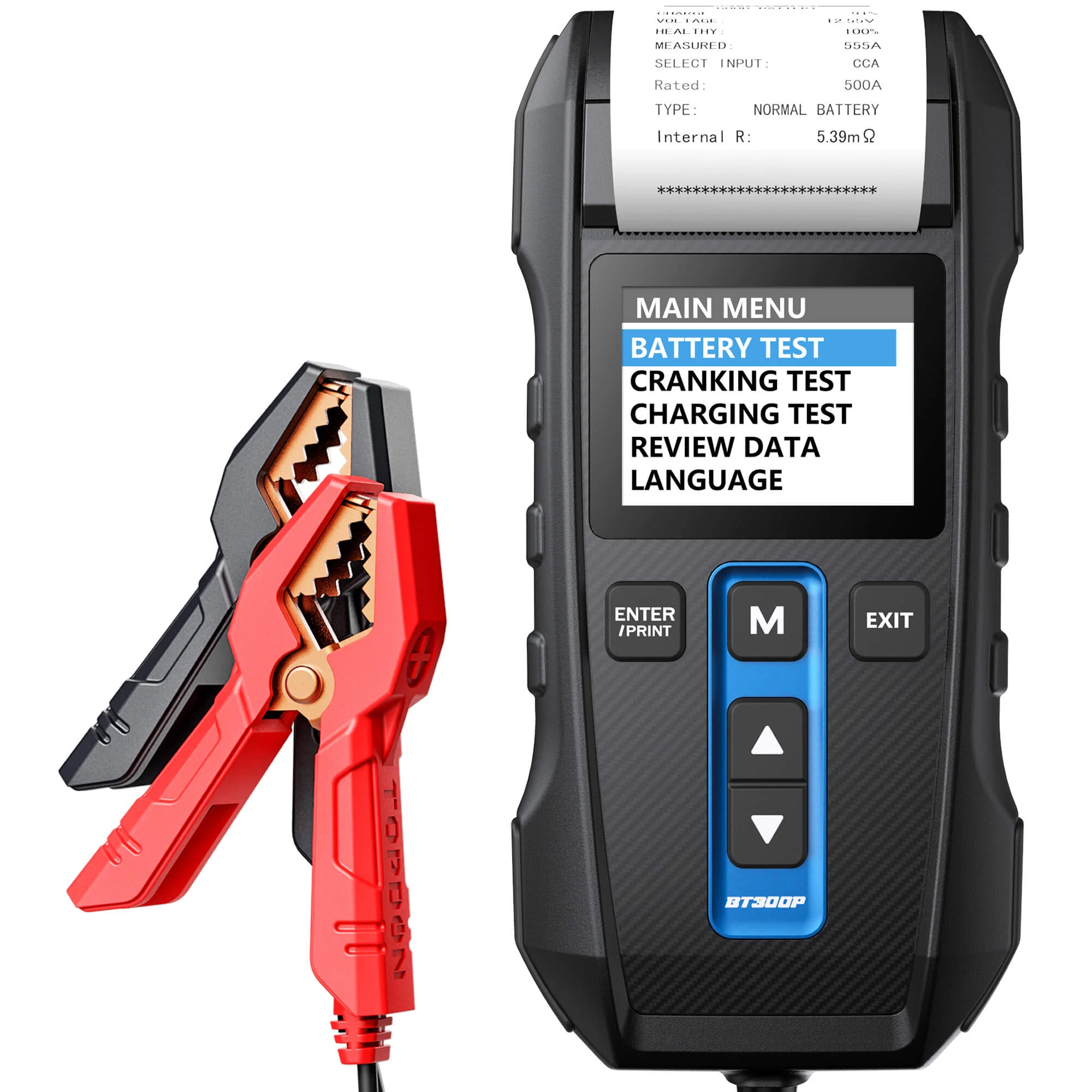

The TOPDON BT300P is a professional 12V battery and charging system tester with one capability that sets it apart from every other handheld tester in the lineup: a built-in thermal printer that produces a complete, customer-ready test report in seconds. For shops that need to attach documentation to a work order, support a warranty claim, or hand a customer something tangible that explains the test results, the BT300P delivers that without any extra steps, cables, or equipment.
Print Professional Reports Instantly — No Computer Required
The moment a test is complete, press the print button and the BT300P's built-in thermal printer produces a clear, detailed report in two to three seconds. Battery health, CCA reading, state of charge, state of health, voltage, internal resistance, and a pass/fail verdict are all printed on a compact slip that can be handed to the customer, attached to the work order, or filed for future reference. Three rolls of thermal paper are included in the box — one installed and two spares — and replacement paper is standard thermal receipt paper, easy to find and inexpensive to stock.
The printer requires a battery voltage above 9.5V to operate, which is worth keeping in mind when testing deeply discharged batteries. In those cases, charge the battery first, then test and print.
12V Battery Testing at 99.5% Accuracy
Using advanced conductance testing technology, the BT300P measures a 12V battery's actual CCA value, State of Health (SOH), State of Charge (SOC), voltage, and internal resistance across a 100 to 2,000 CCA range. Results come back in about 10 seconds and are displayed in plain language — GOOD BATTERY, GOOD RECHARGE, RETEST AFTER CHARGING, BAD CELL REPLACE, or REPLACE — so there's no ambiguity about what action to take. The 99.5% accuracy rating means the results can be relied upon for customer-facing work and warranty documentation without second-guessing.
Compatible battery types include Regular Flooded, AGM Flat Plate, AGM Spiral, Gel, and EFB. Ten international battery rating standards are supported: CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, and GB — covering batteries from virtually any manufacturer or market.
12V and 24V Cranking and Charging System Tests
The BT300P's wider DC 9V–30V working voltage range supports cranking and charging system testing on both 12V and 24V systems — a meaningful capability for shops that also service commercial trucks, vans, RVs, or equipment running dual-battery configurations. The cranking test measures starting voltage and crank time under load. The charging test analyzes no-load voltage, loaded voltage, and alternator ripple, giving you a complete picture of whether the charging system is keeping up with the battery's needs. Results from both tests can be printed immediately alongside the battery test for a complete, multi-page service record.
Data Review for Last Test Results
The BT300P stores the results of the most recent battery, cranking, and charging tests in memory for easy recall. If you need to pull up the last set of readings to discuss with a customer or review before printing, the data review function gives you instant access without running the test again — a small but practical convenience in a busy shop environment.
Smoke-Free Copper Clamps and Reverse Polarity Protection
The BT300P ships with premium spark-free, smoke-free copper clamps that suppress sparks at the moment of connection — reducing the risk of igniting battery gases during hookup. Reverse polarity protection prevents damage to the tester and the vehicle if the clamps are connected backward. The 31.5-inch cable length provides comfortable reach to battery terminals in most engine bays without straining or repositioning.
Portable, Durable, and Ready for the Road
At 16.76 oz and 8.19 × 3.94 × 1.49 inches, the BT300P is substantial enough to feel like a professional tool without being difficult to carry on mobile service calls. The rugged housing handles the daily demands of shop floors, and the 2.4-inch color display reads clearly in both dim garages and bright sunlight. Like all TOPDON testers in this series, it powers directly from the vehicle through the test clamps — no batteries to charge, no power cables to manage, just connect and test.
Frequently Asked Questions
What makes the BT300P different from the BT200 and BT100?
A: The BT300P's defining feature is its built-in thermal printer, which produces an instant, customer-ready test report at the press of a button — something neither the BT200 nor the BT100 can do. It also supports 24V cranking and charging system tests (in addition to 12V battery testing), making it useful for commercial vehicles and dual-battery setups. The BT200 also tests 24V systems but lacks a printer. The BT100 is 12V-only with no printer. For shops that need documentation capability and broader system coverage, the BT300P is the clear choice.
What does the printed report include?
A: The printed report includes the battery type and standard used, CCA rating, actual CCA value measured, State of Health (SOH), State of Charge (SOC), voltage, internal resistance, and the final test verdict. For cranking and charging tests, the relevant data from those tests is also printed. The result slip is compact and easy to attach to a work order or hand directly to a customer.
What thermal paper does the BT300P use, and where can I get more?
A: The BT300P uses standard thermal receipt paper rolls. Three rolls are included in the box — one pre-installed and two spares. Replacement rolls are widely available at office supply stores, from thermal paper suppliers, or online. When purchasing replacements, match the roll width specified in the user manual to ensure compatibility.
Does the BT300P test 24V batteries?
A: The BT300P's battery health test (SOH, SOC, CCA) is designed for 12V batteries only. However, it does support cranking and charging system tests on 24V systems, making it useful for diagnosing starting and alternator performance on commercial trucks, vans, RVs, and equipment with 24V electrical systems.
What battery types and rating standards does the BT300P support?
A: The BT300P tests Regular Flooded, AGM Flat Plate, AGM Spiral, Gel, and EFB batteries from 100 to 2,000 CCA. It supports 10 international battery rating standards: CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, and GB.
Can I review past test results without reprinting?
A: The BT300P stores the results of the most recent battery, cranking, and charging tests in its onboard memory. You can recall those results at any time using the data review function. Note that only the last test in each category is stored — the BT300P does not maintain a full history log of previous sessions.
Does the printer work if the battery is very discharged?
A: The built-in printer requires a minimum battery voltage of 9.5V to operate. If the battery under test is deeply discharged and below that threshold, charge it before testing and printing. The battery test itself will still run and display results on screen even at lower voltages, but printing will not be available until voltage is above the threshold.
What is included in the box?
A: The BT300P ships with the tester unit with attached test clamps, a carrying bag, three rolls of thermal printer paper (one installed, two spares), and a user manual.
What is the warranty on the BT300P?
A: The BT300P comes with a 1-year manufacturer's warranty.
