Product Specifications for Kenwood TK-2140 / NX-220 / NX-3200 Series Replacement Battery | 7.2V 2000mAh NiMH
| BM Part #: | BP5626MH-1 |
|---|---|
| Voltage: | 7.2 Volt |
| Capacity: | 2000 mAh |
| Type: | NiMH |
| Length: | 3.96" |
| Width: | 2.21" |
| Height: | 0.89" |
| Shipping Weight: | 1.00Lbs |
| Warranty: | 1 Year |
- Broad Kenwood compatibility — one battery covers multiple radio families — fits TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3160, TK-3170, TK-3173, TK-3360, NX-220, NX-320, NX-420, NX-3200, NX-3220, NX-3300, NX-3320, NX-3400, NX-3420; direct replacement for OEM batteries KNB-26N and KNB-56N.
- 2000mAh NiMH chemistry with 500 charge cycles — reliable rechargeable capacity for shift-length radio operation; NiMH chemistry is conditioner-compatible for maintaining long-term battery health across the full service life.
- Thermal protection and ultrasonic-welded housing — built-in thermal protection guards against overcharge damage; ABS housing with ultrasonic weld and pure nickel tab welding for durability in demanding operational environments.
- Compatible with Endura TWC1-KW3, TWC1M-KW3, and TWC6M-KW3 chargers — works with both rapid and trickle charge types; desktop and in-vehicle charger options available for NX-3000 series and other compatible platforms.
- 12-month warranty; 0.89" housing thickness — backed by a full one-year warranty; slim 0.89" profile maintains the original radio form factor without adding bulk.
Product Description

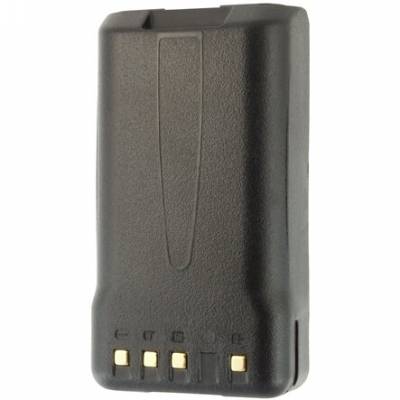

BP5626MH-1 Replacement Battery for Kenwood Two-Way Radios
The BP5626MH-1 is a 7.2V 2000mAh NiMH replacement battery for a wide range of Kenwood TK-series and NX-series two-way radios. It is a direct, drop-in replacement for OEM batteries KNB-26N and KNB-56N, maintaining the original radio form factor at 0.89" housing thickness while delivering reliable shift-length performance and a rated service life of 500 charge cycles.
Compatible Kenwood Radios
The BP5626MH-1 is compatible with the following Kenwood radio models:
- TK-Series: TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3160, TK-3170, TK-3173, TK-3360
- NX-Series: NX-220, NX-320, NX-420, NX-3200, NX-3220, NX-3300, NX-3320, NX-3400, NX-3420
Charging and Maintenance
The BP5626MH-1 supports both rapid and trickle charging and is compatible with Endura chargers TWC1-KW3, TWC1M-KW3, and TWC6M-KW3. Desktop and in-vehicle charger options are available for NX-3000, NX-3200, NX-3300, NX-3400, and other radios using this battery. The battery is conditioner-compatible, allowing periodic conditioning cycles to maintain capacity and extend service life across the full 500-cycle rating.
Operating temperature is -10°C to +65°C during discharge and 0°C to +40°C during charging — suitable for most indoor and outdoor commercial and public safety applications.
Construction and Protection
The BP5626MH-1 is built with an ABS housing with ultrasonic weld, pure nickel tab spot welding, and built-in thermal protection to guard against overcharge damage. At 3.96" × 2.21" × 0.89" and 8.2 oz., it installs directly into compatible Kenwood radios without modification.
Frequently Asked Questions
What Kenwood radios is the BP5626MH-1 compatible with?
The BP5626MH-1 fits the following Kenwood models: TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3160, TK-3170, TK-3173, TK-3360, NX-220, NX-320, NX-420, NX-3200, NX-3220, NX-3300, NX-3320, NX-3400, and NX-3420.
What OEM batteries does this replace?
The BP5626MH-1 is a direct replacement for Kenwood OEM batteries KNB-26N and KNB-56N.
What chargers are compatible with this battery?
The BP5626MH-1 is compatible with Endura chargers TWC1-KW3, TWC1M-KW3, and TWC6M-KW3. Desktop and in-vehicle charger options are available for NX-3000 series and other radios using this battery. It supports both rapid and trickle charge types.
Is this battery conditioner-compatible?
Yes. The BP5626MH-1 is compatible with battery conditioners, which periodically discharge and recharge the battery to prevent capacity loss from memory effect and maintain performance across the full 500-cycle service life.
What is the operating temperature range?
The BP5626MH-1 operates from -10°C to +65°C during discharge. Charging should be performed between 0°C and +40°C. Charging outside this range can reduce battery life and capacity.
How long is the warranty?
The BP5626MH-1 carries a 12-month warranty.
Will this battery change the size or fit of my radio?
No. At 0.89" housing thickness, the BP5626MH-1 matches the original OEM profile and installs directly into compatible Kenwood radios without modification to the radio or battery door.
Cross Reference & Compatibility
- Kenwood KNB-26N
- Kenwood KNB-56N
This battery can be used in these models:
- Kenwood NX220
- Kenwood NX320
- Kenwood NX3200
- Kenwood NX3220
- Kenwood NX3300
- Kenwood NX3320
- Kenwood NX3400
- Kenwood NX3420
- Kenwood NX420
- Kenwood TK2140
- Kenwood TK2160
- Kenwood TK2170
- Kenwood TK2360
- Kenwood TK3140
- Kenwood TK3160
- Kenwood TK3170
- Kenwood TK3173
- Kenwood TK3360
