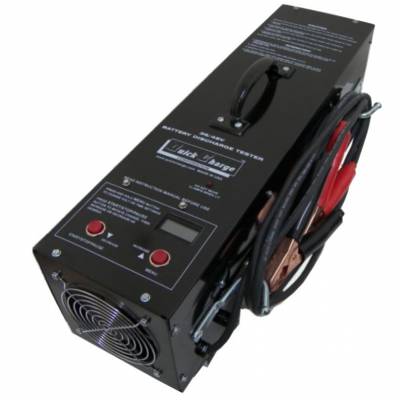

Quick Charge BD1224 12/24 Volt Battery Discharger
Item #: BD1224 |
Special Order: Ships in 1-2 Weeks
Be the first to Write a Review
MADE IN THE USA!Specs
Product Specifications for Quick Charge BD1224 12/24 Volt Battery Discharger
Specifications:
| BM Part #: | BD1224 |
|---|---|
| Made In: | U.S.A. |
| Voltage: | 12/24 Volt |
| Length: | 22" |
| Width: | 8" |
| Height: | 7" |
| Shipping Weight: | 20.40Lbs |
| Warranty: | 2 Year |
| Product Manual: | Download |
Features:
- This item is not eligible for free shipping.
- Made in the USA. Why it matters:
- Superior craftsmanship; rigorously tested; high-quality parts.
- Three selectable discharge rates: 75 amp, 56 amp, & 25 amp.
- Adjustable run time (5 to 400 minutes) and cutoff voltage.
- Microprocessor controlled.
- No AC power required; operates from the battery's voltage.
- LCD display for easy reading.
- Fan cooled.
- 200 amp clamps on 8' #4 cables.
- 8 ft. DC cord with cord wrap brackets.
Description
Product Description
The Quick Charge BD1224 "BD" Battery Discharger is a robust, microprocessor-controlled device designed for accurately testing the capacity of 12V and 24V deep-cycle batteries as a percentage of their reserve capacity. It's the essential tool for fleet managers, battery retailers, and maintenance technicians who need reliable performance data and bad cell detection without relying on external power.
Key Features & Benefits
- Microprocessor Controlled: Ensures high accuracy and reliability in discharge testing.
- No AC Power Required: Operates entirely from the battery being tested, offering maximum portability and field use flexibility.
- Capacity Testing: Measures and displays battery capacity as a percentage of its reserve capacity, providing clear insight into its remaining lifespan and performance health.
- Bad Cell Detection: Identifies failing or weak cells within the battery pack.
- User-Adjustable Discharge Rates: Select from three preset current levels—25, 56, or 75 DC Amps—to match the battery specification or test standard.
- Flexible Termination Settings: Allows you to set precise voltage and time termination limits to protect the battery and ensure a controlled test environment.
- Built-in Thermal Protection: Automatically safeguards the unit during high-current testing.
- Clear LCD Display: Provides real-time readouts of the test parameters and results.
- Heavy-Duty Connections: Comes equipped with 200 Amp Clamps on 8' of #4 cables for a secure, low-resistance connection.
- Cooling: Fan Cooled design ensures optimal performance and longevity.
Technical Specifications:
- Model: BD1224
- DC Volts: 12V and 24V
- DC Amps (Discharge Rates): 25, 56, and 75 Amps
- Dimensions (H. W. D.): 7" x 8" x 22"
- Weight: 16 lbs
- Warranty: 2 Years
- Manufacturing: Made in U.S.A.
