Product Specifications for Battery Tender 12 Volt 1.25 Amp Battery Charger - 2 Banks (California Compliant)
| BM Part #: | 022-0165-DL-WH |
|---|---|
| Voltage: | 12 Volt |
| Charging Rate: | 2.5 Amp (1.25 Amp Per Bank) |
| Input Voltage: | 120VAC @ 60 Hz |
| Shipping Weight: | 4.60Lbs |
| Warranty: | 2 Year (Handled Directly Through Deltran) |
| Product Manual: | Download |
| Datasheet: | Download |
- Includes two Clamp Harness and two Lug Harness
- 48" Charging Leads supplied with unit (2 leads)
- 2 independent charging stations
- Extremely lightweight Less than 3 lbs
- Temperature Range: 0F° to 122F° Nominal
- Microprocessor controlled constant current charging
- Reverse Polarity Protected
- Spark Proof
- Charger for virtually all lead-acid batteries, including flooded or sealed, maintenance free, AGM (Absorbed Glass Mat) and Gel Cell.
- Will comply to all International safety standards (UL/CSA/CE)
Product Description

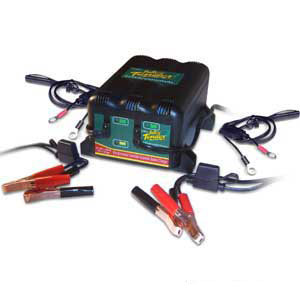

The 2 Bank Battery Tender Charging Station contains two encased 1.25 amp battery chargers designed to fully charge a battery and maintain it at proper storage voltage without the damaging effects caused by trickle chargers.
Tech Tip: Using A Multi-Bank Charger
Each bank of this charger is 1.25 amps. Combined, this is an output of 2.5 amps (2 banks of 1.25 amps each). This is commonly used in two ways:
- Connect each bank to separate battery systems, charging both by 1.25 amps each.
- Connect both amps to the same battery system, charging it by 2.5 amps total.
Customer Reviews
It took forever to find a 2 bank battery tender and battery mart had it! Works great
Using to charge 2 kids 12v 4-wheeler batteries. Working well so far. Easy to install and use. I'm using the clamp harnesses. The lug harness eye holes are too big for the batteries I have it connected to. I think for 99% of batteries they would be fine but the 4-wheelers are Chinese and the batteries/terminal bolts are the smallest I've ever seen. 2 months plugged in and startup works good. 4-wheelers not used this time of year and I've started them once no problem since I put them on the chargers with new batteries.
Seems like a quality Battery Tender product.
Just tried this charger out today, works great. and the delivery of my order was most excellent.
Mounted in my enclosed trailer so I can plug both ATV's in and keep battery's fully charged.
I have used Battery Tender products in past, can't say enough good about their products.
I also like all the options for cables.
I have two of these units and use them on diesel engine trucks, which have two batteries. These units work great, keeping the batteries topped up and ready for powerful starts. I have had good reliability and performance from these units, and other Battery Tender products.
Operated as advertised. Turnkey out of the box. Works like a champ for 2 12-V marine batteries.
