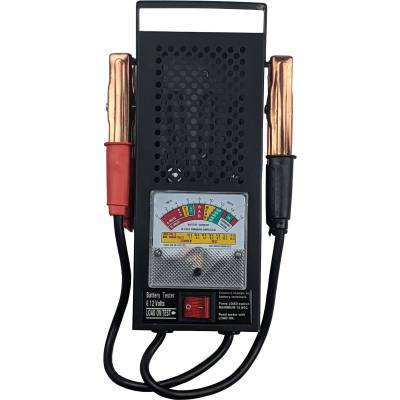

Product Specifications for Battery Load Tester for 6 & 12 Volt Batteries Up to 1000 CCA
| BM Part #: | 50113 |
|---|---|
| Voltage: | 6 / 12 Volt |
| Length: | 6 1/4" |
| Width: | 3 1/4" |
| Height: | 11 1/4" |
| Shipping Weight: | 5.00Lbs |
| Warranty: | 1 Year |
| Product Manual: | Download |
- Heavy duty copper plated clamps.
- Internal load unit with 100 amp load capacity.
- UL listed load safety switch to prevent arcing.
- Heavy duty steel case.
- Convenient insulated carrying handle.
- Complete with fully illustrated instructions.
Product Description
This 6 and 12 Volt battery tester with true 100 Amp load works with conventional and maintenance free lead acid batteries. This car battery load tester is completely portable; outside power in not required. Tests can be completed in 10 seconds.
Features:
- Tests 6 & 12 Volt Batteries up to 1000 CCA
- For conventional and maintenance free batteries in cars, light trucks, lawn tractors, and RVs.
- Simple to Use
- Completely portable - external power source not required. Top mounted rocker switch for easy operation. Complete test done in 10 seconds.
- Accurate & Dependable
- Heavy duty, shock-resistant ventilated cover with rubber insulated carrying handle for comfort and safety. Heavy duty, color coded copper-plated clamps.
- Complete with instructions.
- Does not contain asbestos.
- Load Testing a Battery:
- Turn engine and all electrical accessories off.
- Connect BLACK clamp to battery NEGATIVE.
- Connect RED clamp to battery POSITIVE.
- Hold Load switch on for 10 seconds (15 seconds max).
- Read meter with load still on and refer to battery analysis table.
Cross Reference
Customer Reviews
this unit worked very well. Love it.
Works as stated.
great product arrived fast and worked great will come in very handy in the future when a battery is questionable
Exceptional price good quality product
Finally! A tool that I needed and is reasonably priced. I have to mow a large area and it takes a few riding lawn tractors. This tool can check if it is the battery that is defective or the charging system. GREAT!
Looks like it will do what it is supposed to do.
In a few weeks, I will see how hot it gets.
Really simple.
will this test 8 volt batteries
