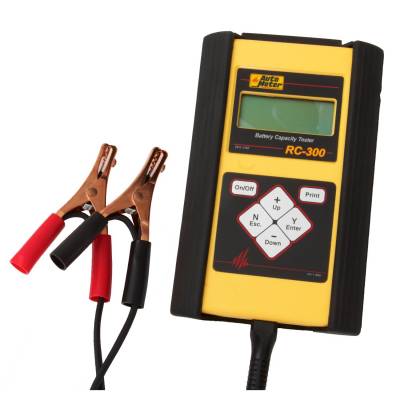

Product Specifications for AutoMeter RC-300 Battery Tester for 6V & 12V Applications
| BM Part #: | ACC-RC-300 |
|---|---|
| Length: | 6.75" |
| Width: | 3.75" |
| Height: | 1.00" |
| Shipping Weight: | 6.00Lbs |
| Warranty: | 1 Year (90 Days on Cables) |
| Product Manual: | Download |
| Load Test Capacity: | 40 Amp |
| Battery Sizes: | 4.0 to 50 Amp Hour |
| Volt Ranges: | Digital 0-30 |
| Internal Battery: | 9 Volt Alkaline |
Immediately determine Amp Hours remaining in each battery. The RC-300 is a portable, full-featured, menu-driven battery tester that provides quick and professional load results using Auto Meter's proven Load Testing Technology. The RC-300 is user friendly. It tells you what to do. It is professionally accurate. Detailed test results are shown on the LCD display after each test and can be reviewed and/or printed from memory.
The RC-300 performs a battery load test on 6 & 12 volt batteries. The RC-300 automatically identifies the appropriate voltage & displays the menu selection & instructions needed for the battery being checked or tested.
- Tests 6V and 12V batteries rated between 4AH - 50AH. Great for Powersports and small valve regulated batteries.
- Tests SLA, Flooded, Gel Cell, or AGM batteries. Also tests discharged batteries and detects bad cells.
- Applies a true 40 amp load during testing to simulate real world operating conditions and provide more accurate test results.
- Stores the last 50 tests in memory
- The RC-300 6V and 12V battery tester enables the user to "blue print" known good batteries of different types/sizes to drive improved testing accuracy. The unit will store up to 40 different "blue printed" battery types.
- Test results include: battery's measured amp hour (AH) capacity, battery voltage and percent of charge, and what the battery's state of health is ("good", "near end of life", or "bad").
- 30" - 16 gauge leads
- Tough impact resistant plastic housing with easy grip rubber booth that prevents damage to the unit.
Product Description
Handheld Sealed Lead Acid (SLA) and powersport battery tester. Tests 4 AH to 50 AH rated batteries.
The RC-300 is a portable, fully featured 6V & 12V battery tester that provides quick and accurate results utilizing Auto Meter's Award-winning "Digital Pulse Load" technology. The RC-300 is user friendly, instructing the user exactly what to do while testing an SLA battery. Professionally accurate test results are shown on a LCD display after each test. The RC-300 small battery tester has a built in memory so you can easily review and/or print test results.
- Designed for Power Sport and Small Valve Regulated Batteries
- Amp Hour Scale - 4 to 50 Ah
- Best of Both Worlds - Accuracy via Patented Resistance & Load Test
- Fully Automated Load 40 amp Digital Pulse Load
- Innovative database function allows for highly accurate custom testing of individual battery types
- Increased testing accuracy if tested batteries were "blue printed"
- Stores 40 blue printed battery types
- Allows the user to customize the percentage of rated amp hour versus actual amp hour at which the tested battery would pass or fail
- Tests flooded and AGM batteries
- Tests discharged batteries
- Easy Input Menus
- Dynamic Memory Input for Custom Battery Results
- Stores the last 50 tests in memory
- Reverse polarity protection
- 64 character 4 line LCD screen
- 30" - 16 gauge leads
- Tough plastic case with easy-grip rubber boot
- Customer communication with optional bolt-on PR-20 printer or PR-12 infrared printer or PC cable
