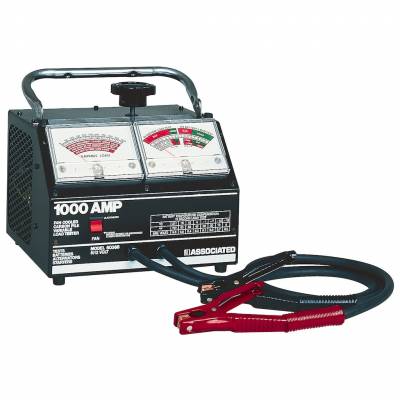

Free ShippingProduct Specifications for Associated 6036B 6/12V Heavy-Duty Variable Carbon Pile Load Tester
| BM Part #: | 6036B |
|---|---|
| Voltage: | 6/12 Volt |
| Length: | 15" |
| Width: | 14" |
| Height: | 15" |
| Shipping Weight: | 35.00Lbs |
| Warranty: | 1 Year |
- 1000 Amp Load: Puts a true heavy load on batteries up to 2000 CCA.
- 6/12 Volt Testing: Handles both 6V and 12V batteries with one tester.
- High-RPM Cooling Fan: Keeps the unit cool so you can test battery after battery.
- Curved Carbon Discs: Designed for maximum contact, smoother operation, and fewer hot spots over time.
- Fine-Adjust Threaded Shaft: Dial in the load precisely with a narrow-thread adjustment.
- Large Color-Coded Voltmeter: Read battery voltage at a glance on a 0-16 volt scale.
- Heavy-Duty Clamps and Leads: Copper-jaw insulated clamps and 5-foot leads with protected voltage-sensing wires.
- Made in USA: Made in the USA from US and global components, with a one-year limited warranty.
Product Description
Load Testing for High-Volume Shops
The Associated 6036B is a 1000-amp carbon pile load tester designed for battery distributors, fleets, and shops that test batteries throughout the day.
Test Battery Performance Under Load
A battery may show a normal voltage reading and still fail under load. A load test measures how it performs under demand, which can help identify weak batteries during troubleshooting, fleet checks, and warranty evaluations.
Common Uses
- Check batteries during receiving and returns
- Test fleet vehicles and equipment
- Make pass-or-fail assessments without software or updates
- Explain test results to customers before they decide on a replacement
The analog design lets technicians apply and control the load directly.
Moving the Tester
The 6036B weighs 32 pounds and can be used on a bench. For easier movement around a shop, the optional Associated 6038C heavy-duty cart is sold separately.
Designed for Shop Use
The 6036B includes protection in areas where cables and leads are prone to wear.
Frequently Asked Questions
What batteries can the 6036B test?
A: It tests 6V and 12V batteries up to 2000 CCA. It isn't made for 24V systems, so test each 12V battery in a 24V setup one at a time.
How long can I hold the load on a battery?
A: The clamps are rated for 1000 amps for 15 seconds, so keep each load application short. Follow the test procedure in the operator's manual for exact steps and settings.
Is this a digital tester, and does it print results?
A: No. The 6036B uses analog gauges, including a 6" ammeter (0-1000 amps) and a voltmeter (0-16 volts). It doesn't have a printer or save results. If you need printouts, browse our digital battery analyzers.
Does the cart come with the tester?
A: No. The Associated 6038C heavy-duty cart is optional and sold separately. It adds wheels for moving the tester around a busy shop or battery room.
How long are the test leads?
A: The leads are 5 feet long. That's enough reach for most bench setups and for batteries sitting on a cart or in a vehicle.
