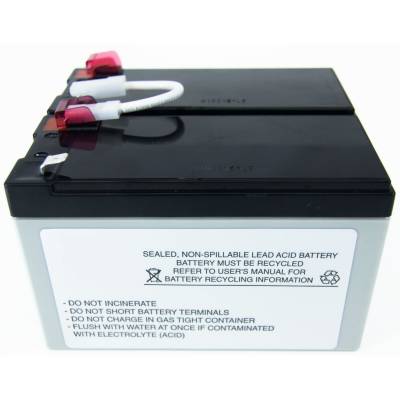

Product Specifications for RBC5 Replacement Battery for APC
| BM Part #: | APCRBC5 |
|---|---|
| Voltage: | 24 Volt |
| Capacity: | 7 Ah |
| Type: | Sealed Lead Acid |
| Length: | 6.0" |
| Width: | 5.25" |
| Height: | 3.94" |
| Shipping Weight: | 10.00Lbs |
| Warranty: | 2 Year |
- This item is not eligible for free shipping.
- Direct replacement for APC RBC5 battery cartridge
- Compatible with APC Smart-UPS and Back-UPS models including SU450, SU700, BR1200, BX900R
- 24V 7Ah sealed lead acid (SLA) battery - same specs as original APC battery
- Dimensions: 6.0" x 5.25" x 3.94" (152mm x 133mm x 100mm) - exact fit for APC battery compartments
- 2-year manufacturer warranty for reliable performance
- Restores full UPS runtime and battery backup capacity
- Significantly lower cost than buying a new UPS or OEM replacement cartridge
- Easy installation - typically takes 5-10 minutes with no tools required.
Product Description
Affordable Alternative to APC Original Batteries
When your APC UPS starts beeping with a "replace battery" warning or no longer provides adequate backup time during power outages, you don't need to buy an expensive OEM battery cartridge or replace the entire UPS. This RBC5-compatible replacement battery from WSP delivers the same 24V 7Ah capacity as the original APC battery at a fraction of the cost. It's a direct fit for APC Smart-UPS and Back-UPS models, restoring full battery backup runtime and protecting your equipment from power outages and surges just like the day you bought your UPS.
Compatible with APC UPS Models
This replacement battery works with the following APC UPS models that originally shipped with the RBC5 battery cartridge:
Smart-UPS (SU Series): SU450, SU450I, SU450INET, SU450NET, SU700, SU700BX120, SU700I, SU700IBX120, SU700INET, SU700NET
Back-UPS Series: BR1200BI-BR, BX900R
To verify compatibility, check the label on your UPS (usually on the back or bottom) for the model number, or open the battery compartment and look for "RBC5" marked on the existing battery. If your model isn't listed but the battery compartment says RBC5, this replacement will work.
Same Specifications as Original APC Battery
This sealed lead acid battery matches the electrical and physical specifications of the original APC RBC5:
- Voltage: 24 Volts (configured as two 12V batteries in series)
- Capacity: 7 Amp-hours (Ah) at 20-hour rate
- Chemistry: Sealed Lead Acid (SLA) / Valve-Regulated Lead Acid (VRLA)
- Dimensions: 6.0" L x 5.25" W x 3.94" H (152mm x 133mm x 100mm)
- Terminal Type: F1 (Faston .187" tabs)
- Weight: Approximately 10.0 lbs (4.5 kg)
The 24V configuration (two 12V batteries wired in series) provides the higher voltage required by these UPS models while maintaining compact dimensions. Because it uses the same sealed lead acid technology as the original, the battery is maintenance-free (no water refilling required) and safe for indoor use in home offices, data closets, server rooms, or anywhere your UPS is located. The spill-proof design means it can be installed in any orientation without leaking.
Easy Installation
Replacing your UPS battery is straightforward and typically takes 5-10 minutes. Most APC UPS models have a front or side panel that slides or pops off to access the battery compartment. Simply disconnect the old battery's wire harness, slide it out, install the new battery, reconnect the harness, and close the compartment. No tools are usually required beyond what's needed to open the UPS cover (often just a thumbscrew or no fasteners at all).
After installation, plug in your UPS and let it charge for at least 4-8 hours before relying on it for battery backup. The UPS may beep or show a "replace battery" warning initially, but this should clear once the new battery is fully charged and the UPS completes its self-test. Consult your UPS manual if the warning persists after 24 hours of charging.
When to Replace Your UPS Battery
UPS batteries typically last 3-5 years depending on usage, temperature, and how often they're discharged. Signs that your battery needs replacement include:
- UPS beeping continuously or showing a "replace battery" indicator
- Significantly reduced runtime during power outages compared to when new
- UPS failing to switch to battery power during outages
- Battery age exceeding 3-5 years, even if no obvious symptoms
- Bulging or swollen battery case (indicates internal failure)
Replacing the battery proactively every 3-4 years ensures your equipment stays protected. It's far less expensive than replacing computers, networking equipment, servers, or data lost due to unexpected shutdowns.
2-Year Warranty
This replacement battery includes an 2-year manufacturer warranty covering defects in materials and workmanship. If the battery fails to hold a charge or exhibits manufacturing defects within the warranty period, we'll replace it at no charge. The warranty does not cover damage from misuse, physical damage, or batteries that have simply reached end-of-life due to normal aging.
Frequently Asked Questions
Is this battery as good as the original APC RBC5?
Yes. This battery uses the same sealed lead acid chemistry, voltage, and capacity as the original APC RBC5. It's manufactured by WSP to the same specifications and will restore your UPS to full runtime capacity. The main difference is price — third-party replacement batteries cost significantly less than APC's branded cartridges while delivering equivalent performance. We back this with an 2-year warranty.
How do I know if my UPS uses an RBC5 battery?
Check your UPS model number against the compatibility list above. If your model is listed, it uses the RBC5. You can also open your UPS battery compartment and look at the existing battery — if it's marked "RBC5" or measures approximately 6.0" x 5.25" x 3.94", this replacement will fit. When in doubt, take a photo of your current battery (including any labels) and contact us for verification before ordering.
Why is this battery 24V instead of 12V?
The RBC5 is configured as a 24V battery pack, which is achieved by wiring two 12V batteries in series inside a single housing. This higher voltage is required by certain UPS models to deliver the necessary power output. The battery arrives pre-configured as a 24V unit, so you don't need to worry about wiring multiple batteries together — it's a simple plug-and-play replacement.
How much runtime will I get with this battery?
Runtime depends on the load connected to your UPS. A fully charged 7Ah battery in a 450VA or 700VA UPS powering a desktop computer and monitor (approximately 150-250W load) typically provides 5-15 minutes of backup time. Lighter loads (networking equipment like modems and routers) can run for 30 minutes to an hour or more. Heavier loads will drain the battery faster. Check your UPS manual or the APC website for runtime charts specific to your model and typical load scenarios.
Will this void my UPS warranty?
No. In the United States, the Magnuson-Moss Warranty Act prevents manufacturers from voiding warranties simply because you used a third-party replacement part. Using a compatible replacement battery will not void your APC UPS warranty. However, if you have an active warranty on your UPS and it's experiencing battery issues, you may want to contact APC first — they may replace the battery under warranty at no charge.
How long will this replacement battery last?
Under typical conditions (moderate room temperature, occasional discharge cycles), sealed lead acid UPS batteries last 3-5 years. Factors that shorten battery life include high temperatures (above 77°F/25°C), frequent deep discharges, and letting the battery sit uncharged for extended periods. To maximize lifespan, keep your UPS in a cool, well-ventilated area and plug it in continuously so the battery stays charged.
Do I need to charge the battery before installing it?
The battery ships with a partial charge but should be fully charged before relying on it for backup power. Install it in your UPS, plug in the UPS, and let it charge for 4-8 hours (or overnight) before using it for battery backup. The UPS will charge the battery automatically once connected. Some UPS models may beep or show warnings until the battery is sufficiently charged and passes the self-test.
Can I recycle my old UPS battery?
Yes, and you should. Lead-acid batteries are highly recyclable and should never go in household trash. Most battery retailers (including auto parts stores, hardware stores, and battery specialty shops) accept used SLA batteries for recycling, often at no charge. Some municipalities also have hazardous waste collection programs that accept batteries. Check with your local recycling center or waste management authority for options in your area.
What if the replacement battery doesn't fit or work?
If you've verified your model number is on the compatibility list and the battery doesn't fit or function properly, contact us immediately. We'll work with you to resolve the issue, whether that means sending a replacement or processing a return. Common issues include incorrect model identification (some APC models look similar but use different battery sizes) or receiving a defective battery, both of which we can address quickly.
Cross Reference & Compatibility
- APC BR1200BI-BR
- APC BX900R
- APC SU450
- APC SU450I
- APC SU450INET
- APC SU450NET
- APC SU700
- APC SU700BX120
- APC SU700I
- APC SU700IBX120
- APC SU700INET
- APC SU700NET
- APC SU700X93
