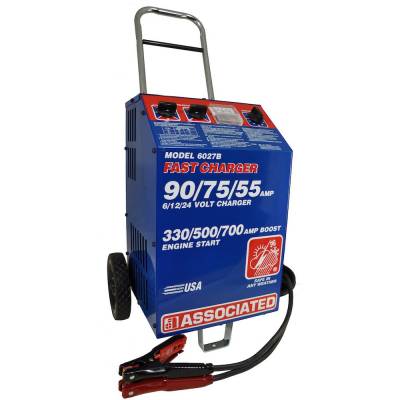

Associated 6027B 220V Heavy Duty International Commercial Battery Charger with Engine Start
Item #: ACC-6027B |
Special Order: Ships in 7-10 Days
Be the first to Write a Review

Specs
Product Specifications for Associated 6027B 220V Heavy Duty International Commercial Battery Charger with Engine Start
Specifications:
BM Part #: | ACC-6027B |
---|---|
Voltage: | 6/12/24 Volt |
Charging Rate: | 90/75/55 Amp |
Input Voltage: | 230 VAC; 50/60 Hz |
Shipping Weight: | 75.00Lbs |
Warranty: | 1 Year |
Product Manual: | Download |
Amp Boost Rating: | 330/500/700 Amp |
Cranking Assist Rating: | 325/270/180 Amp |
Timer: | 90 min. Automatic |
AC Cord: | 2.4 m (7.8 ft) |
DC Cord: | #4 AWG, 3 m (9.8 ft) |
Clamps: | 500 Amp Rating |
Features:
- This item is not eligible for free shipping.
- IMPORTANT: This unit only comes with a European 220V Plug. Not for use in the US.
- Chargers all conventional 6/12/24 batteries.
- 330/500/700 amp boost rating.
- 90/75/55 amp continuous charge rating.
- Cranking assist rating of 325 amps at 6 volts.
- Heavy-duty transformer to seal the unit against external agents and to prevent harmonic distortions.
- Multi-diode rectifiers (patented) to take over in case of failure.
- Fan cooling prevents overheating, enhancing the unit's life span significantly.
- 500 amp clamps are covered with vinyl insulation; will not arc or spark.
- Patented "Flexi-Spring" cable guards relieve cable stress.
- CE approved. Certified for use outdoors in any weather.
Description
Product Description
IMPORTANT: This unit only comes with a European 220V Plug. Not for use in the US.
The Associated 6027B is one of the highest performance fleet automotive battery chargers on the market. It charges 6V, 12V, and 24V batteries and features a 90/75/55 amp continuous charge rate and 330/500/700 amp boost engine start. UL listed for indoor and outdoor use; safe in any weather. The 500 amp clamps are covered in vinyl insulation and will not spark or arc.
220VAC 50/60hz input.
Powerful Performance
- Charges all conventional 6/12/24 batteries.
- Associated's highest output 220VAC charger.
- Cranking assist rating of 325 amps at 6 volts.
Durability
- Vacuum impregnated heavy-duty transformer to seal the unit against external agents and to prevent harmonic distortions.
- Multi-diode rectifiers (patented) to take over in case of failure.
- Fan cooling mechanism prevents overheating, enhancing the unit's life span significantly.
Safety
- Certified to use outdoors in any weather.
- Cautions against incorrect polarity with patented "Stop/Go Light" technology.
- 500 amp clamps are covered with vinyl insulation; will not arc or spark. Patented "Flexi-spring" cable guards relieve cable stress.
Quality
- CE Approved.
- Tested for safety by TUV Rheinland of North America.
- Tested for EMC by DLS Electronic Systems.
