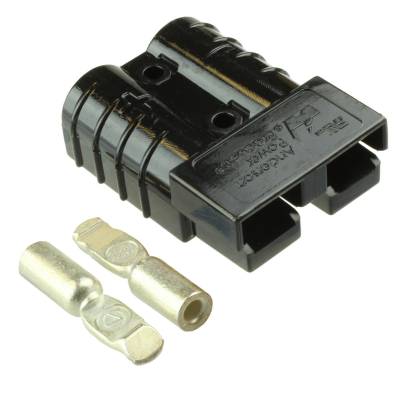

Product Specifications for 6331G4 SB® 50 Black Connector: #10/12 Gauge
| BM Part #: | ACC-6331G4 |
|---|---|
| Voltage: | 80 Volt |
| Capacity: | 50 Amp |
| Length: | 1.89" |
| Width: | 1.38" |
| Height: | 0.63" |
| Shipping Weight: | 0.50Lbs (8 oz) |
| Warranty: | 60 Day Return |
Anderson Power Products® is a registered trademark of Anderson Power Products, Inc.
© 2015 Anderson Power Products, Inc. All Rights Reserved. SB® is a registered trademark of Anderson Power Products, Inc.
Product Description
50 Amp Black Connector Suggested for 80 Volt Systems
This innovative Black SB connector provides cost-effective reliability, design flexibility, and safety for manufacturing, installation, and maintenance.
The two pole connector is rated at 50 amps, with 600 volts of continuous AC or DC operation. Mechanical keys ensure connectors will only connect to other connectors of the same color. Different color housings are selected to identify voltages, thus preventing a mismatch of the power system.
Popular for UPS systems, telecommunications, forklift trucks, wheelchairs, EV, chargers, power electronics, and much more.
Features:
- Mechanical keyed housing
Prevents accidental mating of components operating at different voltages. - Single-piece housing and unitized construction
Provides industrial quality and durability. - Quick disconnect
Avoids the need to unfasten ring type terminals - Genderless design
Makes assembly quick and easy - UL approved for current interrupt
Safe for "Hot Swapping" without shutting down your system. - UL94 V-0 housing material
Provides security in the knowledge that the connector chosen meets strict UL flammability ratings
Cross Reference
Customer Reviews
I used the connectors to mount a motorcycle amp in the saddlebags, to make them quick disconnect. Works great for that, just wish the were waterproof
outstanding service. Thank you
Used this to connect a Renogy solar panel wiring to a Zamp solar port plug-in. It worked perfectly. Functions like a factory installation.
I could not think that any store would have this kind of item in stock on the shelf. It is too specific an electrical item for a city like Gainesville, FL to carry. You might think a wheel chair mobility place or a scooter store would carry this type of connector. They just look at you and chime in saying, "you could look for it online". Well, I did. Battery Mart is the answer for me, from now on.
