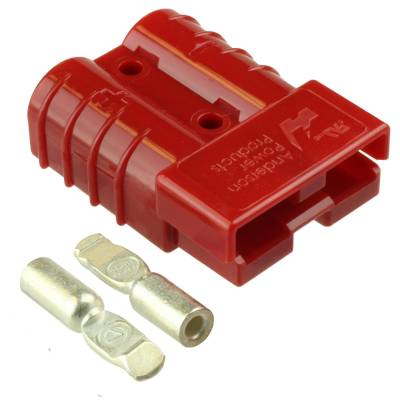

Product Specifications for 6331G2 SB® 50 Red Connector: #10/12 Gauge
| BM Part #: | ACC-6331G2 |
|---|---|
| Voltage: | 24 Volt |
| Capacity: | 50 Amp |
| Length: | 1.89" |
| Width: | 1.38" |
| Height: | 0.63" |
| Shipping Weight: | 0.50Lbs (8 oz) |
| Warranty: | 60 Day Return |
Anderson Power Products® is a registered trademark of Anderson Power Products, Inc.
© 2015 Anderson Power Products, Inc. All Rights Reserved. SB® is a registered trademark of Anderson Power Products, Inc.
Product Description
50 Amp Red Connector Suggested for 24 Volt Systems
This innovative Red SB connector provides cost-effective reliability, design flexibility, and safety for manufacturing, installation, and maintenance.
The two pole connector is rated at 50 amps, with 600 volts of continuous AC or DC operation. Mechanical keys ensure connectors will only connect to other connectors of the same color. Different color housings are selected to identify voltages, thus preventing a mismatch of the power system.
Popular for UPS systems, telecommunications, forklift trucks, wheelchairs, EV, chargers, power electronics, and much more.
Features:
- Mechanical keyed housing
Prevents accidental mating of components operating at different voltages. - Single-piece housing and unitized construction
Provides industrial quality and durability. - Quick disconnect
Avoids the need to unfasten ring type terminals - Genderless design
Makes assembly quick and easy - UL approved for current interrupt
Safe for "Hot Swapping" without shutting down your system. - UL94 V-0 housing material
Provides security in the knowledge that the connector chosen meets strict UL flammability ratings
Cross Reference
Customer Reviews
I used these plugs in an amusement park to charge up electric cars. My operators are tough on equipment! They have yet to break these plugs. Way to go Battery Mart! I will definitely keep you guys in my contact list!
