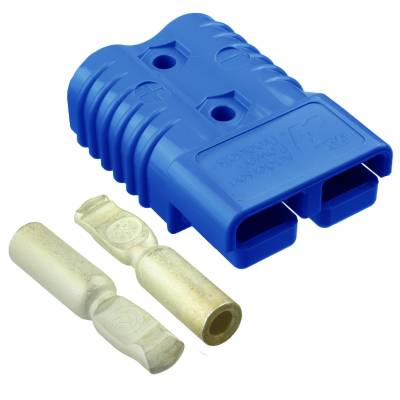

6326G6 SB® 175 Blue Connector: #4 Gauge
Product Specifications for 6326G6 SB® 175 Blue Connector: #4 Gauge
|BM Part #:||ACC-6326G6|
|Shipping Weight:||0.50Lbs (8 oz)|
|Warranty:||60 Day Return|
Anderson Power Products® is a registered trademark of Anderson Power Products, Inc.
© 2015 Anderson Power Products, Inc. All Rights Reserved. SB® is a registered trademark of Anderson Power Products, Inc.
175 Amp Blue Connector Suggested for 48 Volt Systems
This innovative Blue SB connector provides cost-effective reliability, design flexibility, and safety for manufacturing, installation, and maintenance.
The two pole connector is rated at 175 amps, with 600 volts of continuous AC or DC operation. Mechanical keys ensure connectors will only connect to other connectors of the same color. Different color housings are selected to identify voltages, thus preventing a mismatch of the power system.
Popular for UPS systems, telecommunications, forklift trucks, wheelchairs, EV, chargers, power electronics, and much more.
- Mechanical keyed housing
Prevents accidental mating of components operating at different voltages.
- Single-piece housing and unitized construction
Provides industrial quality and durability.
- Quick disconnect
Avoids the need to unfasten ring type terminals
- Genderless design
Makes assembly quick and easy
- UL approved for current interrupt
Safe for "Hot Swapping" without shutting down your system.
- UL94 V-0 housing material
Provides security in the knowledge that the connector chosen meets strict UL flammability ratings
