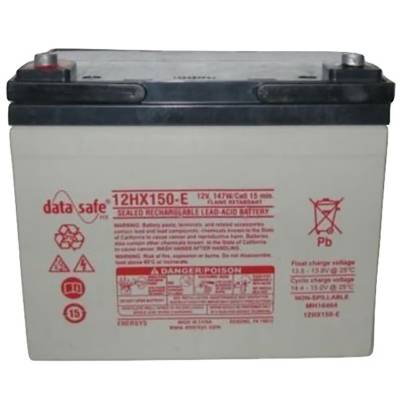

Product Specifications for EnerSys DataSafe 12HX150-E (12V 147W) SLA Battery - Flame Retardant
| BM Part #: | 12HX150-E |
|---|---|
| Battery Polarity: |
|
| Voltage: | 12 Volt |
| Capacity: | 38 Ah |
| Terminals: | M6 Insert |
| Type: | Sealed Lead Acid |
| Length: | 7.8" |
| Width: | 4.9" |
| Height: | 6.7" |
| Shipping Weight: | 32.00Lbs |
| Warranty: | 1 Year |
- Optimized for High-Rate Discharge: Specifically engineered to deliver maximum power during critical short-duration outages, making it the perfect fit for UPS systems.
- Long-Life Reliability: Features a 10-year design life (at $20°C), ensuring your vital systems remain protected for years with minimal maintenance.
- Superior Safety Design: Housed in a UL 94 V-0 flame-retardant case as standard, providing peace of mind for high-density IT environments.
- Leak-Resistant AGM Technology: The Absorbed Glass Mat (AGM) design prevents acid leakage and eliminates the need for water addition.
- High Conductivity Terminals: Equipped with high-integrity M6 insert terminals to ensure maximum power flow and reduced resistance.
Product Description
The EnerSys DataSafe 12HX150-E is a premium Valve Regulated Lead Acid (VRLA) battery engineered for the most demanding Uninterruptible Power Supply (UPS) and Information Technology environments. When every second counts, the 12HX150-E delivers superior high-rate discharge performance, ensuring that your servers, data centers, and emergency systems stay online during power fluctuations.
Built on over 125 years of EnerSys expertise, this battery utilizes advanced gas recombination technology. This means you never have to worry about topping off water levels or dealing with messy leaks. Its compact footprint and high power density allow you to maximize your backup capacity without taking up extra floor space. Whether you are replacing an existing battery bank or designing a new backup solution, the 12HX150-E offers the perfect balance of power, longevity, and safety.
Ideal Applications
This battery is versatile and robust, making it the industry standard for:
- Uninterruptible Power Supplies (UPS): Ideal for APC, Eaton, and Liebert systems.
- Data Centers & IT Infrastructure: Protecting vital servers and networking gear.
- Emergency Lighting: Ensuring pathways stay lit during building power failures.
- Medical Equipment: Providing reliable backup for critical healthcare monitors and devices.
- Security Systems: Powering alarms and surveillance equipment during outages.
Technical Specifications
- Nominal Voltage: 12V
- Performance: 147 Watts Per Cell (15-min rate to 1.67Vpc @ 25°C)
- Capacity: 38Ah (8-hour rate to 1.75Vpc @ 25°C)
- Terminal Type: M6 Threaded Insert (Hardware included)
- Dimensions: 7.8" L x 4.9" W x 6.7" H
- Weight: 32.0 lbs.
- Case Material: UL 94 V-0 Flame Retardant Polymer
Frequently Asked Questions (FAQ)
What does the "E" stand for in 12HX150-E?
The "E" typically denotes the European version of the monobloc. Specifically for the 12HX150-E, this version features the Positive terminal on the Left side. Always verify your cable length and orientation before installing.
Is this battery maintenance-free?
Yes. The DataSafe HX range uses VRLA AGM technology, which recombines gases internally. This eliminates the need for regular water addition and makes the battery spill-proof under normal operating conditions.
How long will the EnerSys 12HX150-E last?
Under ideal float charge conditions at 20°C (68°F), the battery has a design life of 10 to 12 years. Factors such as high ambient temperatures and frequent deep discharges can affect the actual service life.
Can I ship this battery via air or ground?
Yes. The 12HX150-E is classified as non-hazardous and non-spillable per IATA Special Provision A67 and 49 CFR. It is approved for safe shipping across all standard modes of transport.
What is the difference between Watts per Cell and Amp Hours?
While Amp Hours (Ah) measures total capacity over a long period (like 8 or 20 hours), Watts per Cell (WPC) measures the battery's ability to deliver high bursts of power quickly. Since UPS systems usually only need to run for 5–20 minutes, WPC is the more accurate measurement for this application.
Cross Reference & Compatibility
- CSB HRL12150W
- Deka U1HR1500
- Eaton 153302039-001
- Eaton BAT-0053
- Eaton BAT-0065
- Enersys 12HX13R-FR
- Enersys 12HX150
- Enersys 12HX150
- Enersys 12HX150R-FR
- Enersys HX135R
- Enersys HX150
- Enersys HX150-12FR
- Enersys HX150E
- Enersys HX150R
- Exide S12V170F
- FIAMM 12FLX150
- Gruber Power Services 58EGPS-12-35-I
- Interstate 12MQ800
- Narada 12HRL200/-BI
- Power PRC/TC-1235L
- Power Storage Solutions 12MQ150
- Powersonic PHR-12150
- RP-Technik OGiV12330LP
- Sterling HA35-145FR
