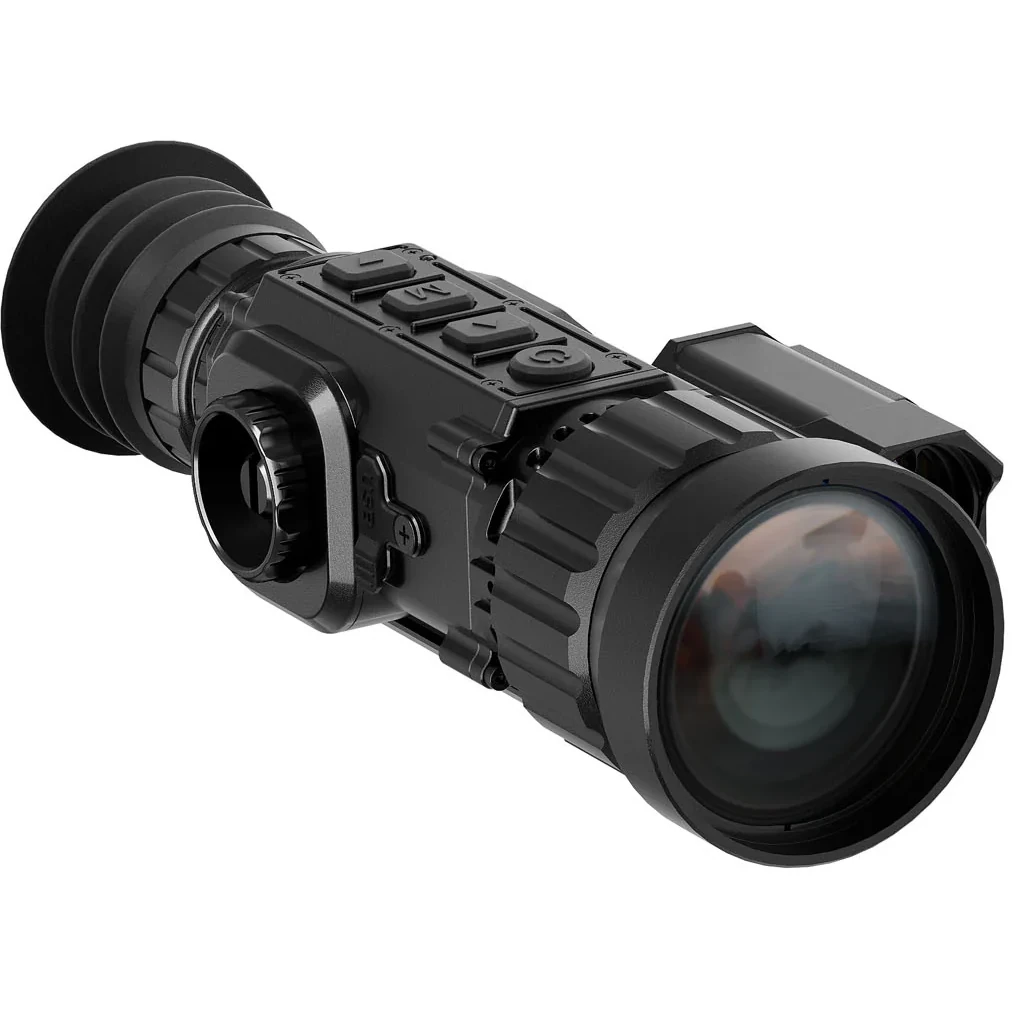

Free Economy ShippingProduct Specifications for TOPDON TS006 Pro 50mm Thermal Imaging Scope
| BM Part #: | TS006PRO |
|---|---|
| Capacity: | 2100 mAh (x4) |
| Length: | 10.24" |
| Width: | 2.36" |
| Height: | 3.14" |
| Shipping Weight: | 3.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- TS006 Pro Thermal Imaging Scope
- Picatinny Mount
- Carrying Bag
- User Manual
- USB Cable
- Video Cable
- 16340 Battery x 8
- Battery Charger
- 640×512 VOx Thermal Sensor: High-sensitivity infrared sensor with ≤40mK thermal resolution and a 50Hz frame rate delivers crisp, smooth thermal imagery even in challenging low-contrast environments.
- Long-Range 50mm Lens: Detect people up to 1.25 miles (2,200 yards) away and vehicles up to approximately 3 miles (4,800 yards) — purpose-built for wide-area surveillance and long-distance hunting.
- HD AMOLED Eyepiece With 5 Color Palettes: A 1024×768 AMOLED display with adjustable diopter and selectable palettes (Iron Red, White Hot, Black Hot, Rainbow, Red Hot) for clear imaging in any condition.
- Laser Rangefinder and 1x–8x Digital Zoom: Integrated laser rangefinding to 1,094 yards plus four zoom levels (1x/2x/4x/8x) with Picture-in-Picture mode for simultaneous wide and close-up views.
- 64GB Onboard Storage With Wi-Fi Streaming: Record video and photos directly to the device, expand storage up to 512GB, and stream live footage to an Android device over Wi-Fi.
- IP65-Rated and Shock-Resistant: Dust and water resistant, shock-rated to 1,000g, and operational from -4°F to 131°F — plus a replaceable 4-cell battery system for extended field use.
Product Description
When you need to see further than the naked eye can reach — at night, in fog, or across open terrain — the TOPDON TS006 Pro is built for the job. Designed for hunters, security professionals, and law enforcement, this long-range thermal scope pairs a high-sensitivity 640×512 VOx sensor with a powerful 50mm fixed lens to deliver crisp, detailed thermal imagery at distances most scopes can't come close to matching.
Detection Range That Changes What's Possible
The TS006 Pro's 50mm lens is built for serious long-range work. Its detection distances speak for themselves:
- Human detection up to 1.25 miles (2,200 yards)
- Vehicle detection up to approximately 3 miles (4,800 yards)
Whether you're scanning wide-open fields before first light, monitoring a perimeter, or tracking game across a ridge, the TS006 Pro gives you the visibility advantage you need before anything or anyone knows you're there.
640×512 Sensor With Best-in-Class Sensitivity
At the heart of the TS006 Pro is a 640×512 VOx infrared sensor with a thermal sensitivity rating of ≤40mK (0.04°C). That level of sensitivity means the camera can distinguish extremely small differences in heat — picking out a person or animal in low-contrast environments where lesser sensors produce muddy, indistinct images. Running at 50Hz, the display stays smooth and responsive even as subjects move across your field of view.
HD AMOLED Eyepiece Display
The 0.39-inch AMOLED eyepiece delivers a sharp 1024×768 resolution image with rich contrast and accurate color rendering. An adjustable diopter lets you dial in focus to your eye without needing glasses for mild nearsightedness. Five selectable color palettes — Iron Red, White Hot, Black Hot, Rainbow, and Red Hot — give you options depending on your environment and what you're looking for.
Laser Rangefinder and Digital Zoom
Built-in laser rangefinding measures distances accurately out to 1,094 yards (1,000 meters) — giving you precise data in the field rather than rough estimates. Digital zoom steps through 1x, 2x, 4x, and 8x magnification, and the Picture-in-Picture (PIP) mode lets you keep a wide view active while zooming in on a point of interest simultaneously, so you never lose track of the bigger picture.
Record, Stream, and Review
The TS006 Pro includes 64GB of onboard storage for recording video and capturing images in the field, with support for cards up to 512GB if you need more room. When connected to an Android device, the built-in Wi-Fi lets you stream live thermal footage directly to your phone or tablet for real-time sharing or remote monitoring. Video can also be transferred via the USB Type-C connection.
Built Tough for the Field
The TS006 Pro is IP65-rated against dust and water, shock-rated to 1,000g, and operates reliably in temperatures from -4°F to 131°F (-20°C to 55°C). The battery system uses four replaceable 16340 cells for approximately 4 hours of run time — and because they're swappable, you can carry spares and keep going when power runs low. A Picatinny mount, carrying bag, 8 CR123A batteries, and battery charger are all included so you're ready to go right out of the box.
Frequently Asked Questions
What is the detection range of the TS006 Pro?
A: The TS006 Pro can detect a human-sized target at up to 1.25 miles (approximately 2,200 yards) and a vehicle-sized target at approximately 3 miles (4,800 yards). These are detection distances — the range at which a target can be identified as present. Recognition and identification distances will be shorter depending on conditions.
How does the laser rangefinder work?
A: The built-in laser rangefinder accurately measures the distance to a target up to 1,094 yards (1,000 meters) away. It gives you a precise real-time readout in the field, taking the guesswork out of range estimation for hunting, surveillance, or other applications where distance matters.
What color palettes does the TS006 Pro offer?
A: The TS006 Pro offers five selectable color palettes: Iron Red, White Hot, Black Hot, Rainbow, and Red Hot. Different palettes perform better in different environments and lighting conditions, so you can switch based on what gives you the clearest picture in the field.
Can I record video with the TS006 Pro?
A: Yes. The TS006 Pro includes 64GB of onboard storage for video and image recording, with support for memory cards up to 512GB for extended recording capacity. Video can also be transferred to a computer via the USB Type-C cable.
Does the TS006 Pro work with a smartphone?
A: Yes, but for Android devices only. The built-in Wi-Fi allows you to stream live thermal footage from the TS006 Pro to an Android smartphone or tablet. iOS devices are not currently supported for Wi-Fi streaming.
How long does the battery last, and can I swap batteries in the field?
A: The TS006 Pro runs on four replaceable 16340 (CR123A-size) batteries, providing approximately 4 hours of continuous use. Because the batteries are user-replaceable, you can carry spare sets and swap them out in the field without any tools. Eight batteries and a charger are included in the box.
What mounting system does the TS006 Pro use?
A: The TS006 Pro ships with a Picatinny rail mount, which is a widely used military-standard mounting system compatible with most modern rifles, crossbows, and tactical platforms. The mount is included in the box, so no additional hardware is required to get started.
