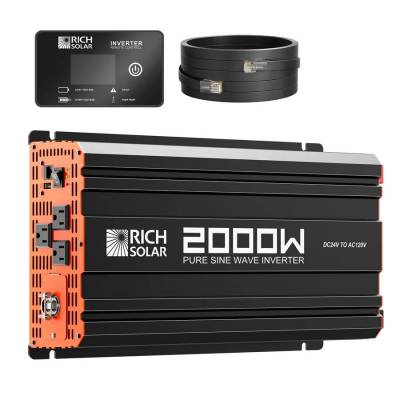

Free Economy ShippingProduct Specifications for Rich Solar NOVA PURE MAX 2K 2000-Watt 24-Volt Pure Sine Wave Power Inverter
| BM Part #: | RS-V2P24 |
|---|---|
| Voltage: | 24 Volt |
| Length: | 16.1" |
| Width: | 9.6" |
| Height: | 4.0" |
| Shipping Weight: | 12.00Lbs |
| Warranty: | 2 Year |
- 2000W Continuous / 4000W Peak: Handles everyday appliances and absorbs the high startup surge of motor-driven equipment without tripping.
- Pure Sine Wave Output: Produces clean, stable AC power that's safe for sensitive electronics like laptops, CPAP machines, and audio equipment.
- Remote Switch Included: Control the inverter from a distance — ideal when the unit is mounted out of reach in a compartment or storage bay.
- Three AC Outlets + USB + High-Output Terminals: Power multiple devices at once, with hardwiring capability for loads requiring more than 15 amps.
- Comprehensive Safety Protections: Automatic shutdown for overload, short circuit, low battery, and overheating keeps your system and devices protected.
- ETL Listed (UL 458 / CSA C22.2): Independently certified to meet U.S. and Canadian safety standards for power inverters.
Product Description
Whether you're powering up an RV, running appliances off a battery bank in a cabin, or keeping critical equipment running on a boat, you need an inverter you can count on. The Rich Solar NOVA PURE MAX 2K delivers 2000 watts of continuous pure sine wave power from a 24-volt DC source — giving you clean, reliable AC power wherever your battery bank takes you.
Pure Sine Wave Power for Sensitive Electronics
Not all inverters are created equal. Modified sine wave inverters can cause buzzing, overheating, or outright damage in sensitive devices. The NOVA PURE MAX 2K produces a pure sine wave output — the same quality of power you get from a standard wall outlet. That means your laptop, CPAP machine, TV, or audio equipment will run exactly as intended, without interference or risk of harm to your gear.
Serious Power Output
With 2000 watts of continuous output and a 4000-watt peak surge capacity, this inverter handles the kind of loads that put lesser units out of commission. The surge rating is especially important for motor-driven appliances — things like refrigerators, air compressors, and power tools draw significantly more power at startup than they do while running. The NOVA PURE MAX 2K absorbs that initial spike and keeps on going.
Multiple Output Options in One Unit
Flexibility is built right into the front panel. You get:
- 3 standard AC outlets (up to 15A each at 120V AC)
- High-output AC terminals for connecting hardwired loads or devices requiring more than 15 amps
- A USB charging port (5V / 2.1A) for phones, tablets, and e-readers
Whether you're plugging in a few appliances or wiring the inverter into a distributed outlet system, the NOVA PURE MAX 2K gives you the connection options to do it right.
Remote ON/OFF Control Included
The NOVA PURE MAX 2K ships with a remote switch — no separate purchase required. Mount the inverter in a storage bay, engine room, or under a bench, and control it from a more convenient location. It's a small feature that makes a big difference in real-world use.
Built-In Safety Protections
This inverter includes a full suite of automatic safety features that protect both your equipment and your battery bank. If something goes wrong, the unit shuts itself down before any damage is done:
- Electronic overload protection with automatic shutdown
- Output short-circuit protection
- Low battery voltage alarm and automatic shutdown
- Over-temperature protection with automatic shutdown
- Built-in internal backup DC fuse
- Ground fault LED indicator on the front panel
A thermally controlled cooling fan runs only when needed, helping manage heat during extended high-power operation without adding unnecessary noise at lighter loads.
ETL Listed and Field-Proven
The NOVA PURE MAX 2K is ETL Listed to UL 458 and CSA C22.2 — the same safety standards required for automotive and marine power inverters sold in the U.S. and Canada. Rich Solar backs this with a track record built across thousands of off-grid installations since 2005.
Compact and Easy to Install
At 10.1 pounds and 16.1 x 9.6 x 4.0 inches, this inverter is easy to mount in tight spaces. It can be installed horizontally on a wall or secured in a compartment — just make sure there's at least 2 inches of clearance on all sides for airflow.
Frequently Asked Questions
What's the difference between a pure sine wave inverter and a modified sine wave inverter?
A pure sine wave inverter produces AC power that closely mirrors what comes out of a standard household outlet. A modified sine wave inverter produces a stepped approximation of that waveform. The practical difference is that sensitive electronics — including many laptops, medical equipment, variable-speed motors, and audio/video gear — can run inefficiently, noisily, or not at all on modified sine wave power. Pure sine wave inverters like the NOVA PURE MAX 2K are compatible with virtually any AC-powered device.
What size battery bank do I need to run this inverter?
The right battery size depends on how much power you plan to draw and for how long. A general rule of thumb: divide your load in watts by 10 to estimate the DC amp draw. Running a 1000-watt load, for example, draws roughly 50 amps from a 24V battery bank. To run that load for 4 hours, you'd want a battery bank with at least 200–250 amp-hours of usable capacity. Lithium batteries are an especially good match for this inverter since they can sustain high discharge rates without the voltage sag common in lead-acid batteries.
Can I use this inverter in my RV, van, or boat?
Yes. The NOVA PURE MAX 2K is well-suited for RVs, camper vans, travel trailers, and marine applications. It's compact enough to mount in tight spaces, includes a remote switch for convenient control, and is ETL Listed to UL 458 — the safety standard specifically covering automotive and marine inverters. Just be sure to install it in a dry, well-ventilated location and keep it away from flammable fumes or gases.
What is the high-output AC terminal used for?
The high-output terminals on the front panel allow you to hardwire the inverter directly into an AC distribution system — like a set of installed outlets in an RV or cabin — or to connect devices that require more than 15 amps to operate. Access them by removing the two screws on the protective cover. Any wiring connected to these terminals should comply with U.S. National Electric Code (NEC) guidelines for wire gauge.
Does this inverter include a remote switch?
Yes. A remote ON/OFF switch is included with the NOVA PURE MAX 2K at no extra charge. Plug it into the remote switch port on the front panel and set the main power switch to the remote position. This lets you turn the inverter on and off from a more convenient location without needing physical access to the unit itself.
