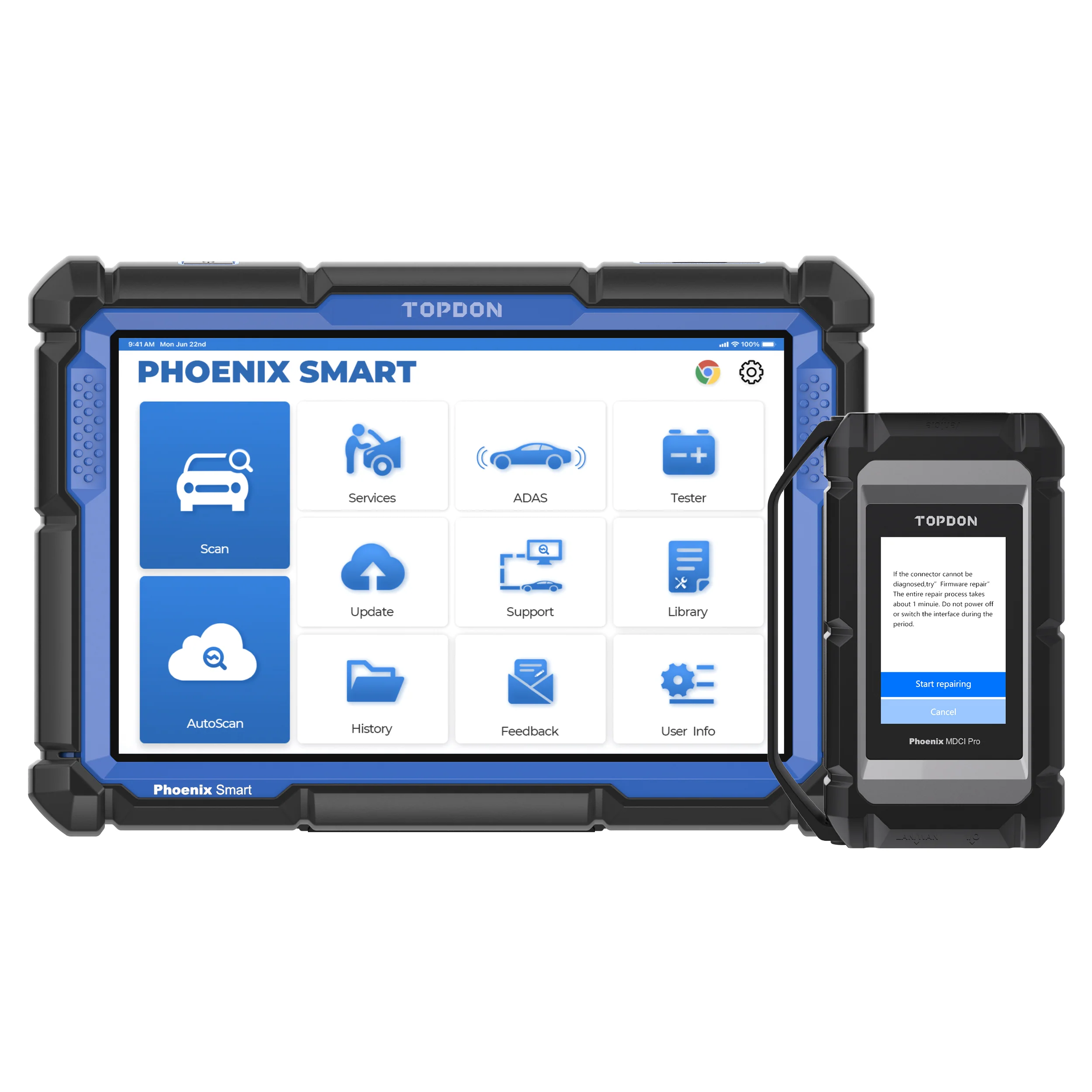

Free Economy ShippingProduct Specifications for TOPDON Phoenix Smart 10.1" OE-Level Diagnostic Scan Tool With Cloud-Based Programming
| BM Part #: | PXSMART |
|---|---|
| Length: | 10.94" |
| Width: | 7.52" |
| Height: | 1.89" |
| Shipping Weight: | 5.00Lbs |
| Warranty: | 2 Year (Continues with Subscription) |
What's in the box:
- Phoenix Smart
- Phoenix MDCI Pro (VCI Dongle)
- OBDI Adapter BOX Transfer Line
- OBDII Extension Cable
- Cigarette Lighter Cable
- Type-C to USB Cable
- Battery Clamps/Cable Set
- User Manual
- 10x Non-16pin Adaptor Cable Kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
- 4x Fuse (φ5*20mm)
- 2x Fuse (φ6*30mm)
- 1x Type A to B Cable
- OE-Level Full-System Diagnostics for 200+ Brands: Scans every vehicle system across more than 200 brands with AutoVIN, one-click fault code retrieval, and Topology Mapping — a full-color graphical view of every module's status on a single screen.
- Cloud-Based Online Programming for 13+ Brands: Connects to manufacturer servers to perform OE-equivalent ECU programming on Benz, BMW, VW/Audi/Skoda/SEAT, Porsche, Land Rover, Jaguar, Renault, Nissan, Infiniti, Subaru, Hyundai, and Kia.
- Online Coding, Offline Programming, and Hidden Function Activation: SCN coding for Benz, online coding for BMW and VW platforms, offline flashing for Ford and Mazda, and factory-hidden feature unlocking across 12+ brands — all without dealer equipment.
- Phoenix MDCI Pro With Advanced Protocol Support: The included VCI supports J2534, DoIP, CAN FD, D-PDU, and RP1210 — covering modern and emerging vehicle communication protocols for current and future vehicle service.
- 41 Service Functions, Built-In Repair Data, and Remote Desk: Comprehensive maintenance reset coverage, factory-level repair data for Benz, BMW, VW/Audi, and Porsche, and a Remote Desk feature for live technical support from TOPDON during complex procedures.
- 10.1-Inch Tablet With All-Day Battery and Broad Add-On Compatibility: Quad-core 2.0GHz processor, 4GB RAM, 128GB storage, 12,600mAh battery, and an expandable platform supporting ADAS, HD/EV diagnostics, key programming, battery testing, thermal imaging, and more.
Product Description
The TOPDON Phoenix Smart is a professional-grade, OE-level diagnostic tablet built for independent shops that need to do the kind of work dealerships do — cloud-based programming, online coding, offline module flashing, and advanced protocol coverage — without sending vehicles out. It combines full-system diagnostics for over 200 vehicle brands with one of the most comprehensive programming and coding toolsets available outside of factory equipment, all on a 10.1-inch Android tablet powered by the Phoenix MDCI Pro VCI.
Full-System Diagnostics for 200+ Vehicle Brands
The Phoenix Smart covers the complete range of vehicle system diagnostics across more than 200 brands — Asian, European, American, and beyond. AutoVIN reads vehicle identification automatically, and a scan of the VIN or license plate populates the vehicle profile without manual entry. Every connected system is diagnosed in a single sweep, with all fault codes surfaced on one screen using the Topology Map — a graphical view of the entire vehicle network that shows the status of each module at a glance, color-coded so you can see what's communicating, what's showing faults, and what's offline without drilling into each system individually.
The full OBD2 suite is included alongside all 41 service and reset functions, covering everything from oil and EPB resets to AdBlue, TPMS, injector coding, suspension calibration, and more.
Cloud-Based Online Programming for 13+ Brands
Online programming is one of the Phoenix Smart's defining capabilities — the ability to connect to manufacturer servers over the cloud and perform the same ECU programming procedures a dealer would use. Supported brands for online programming include:
- Mercedes-Benz, BMW, Porsche
- VW, Audi, Skoda, SEAT
- Land Rover, Jaguar
- Renault, Nissan, Infiniti, Subaru
- Hyundai, Kia
Online parameterization is supported for VW and Audi. Online FFS (Free Function Setting) Activation and Online Calibration & Matching are available for VW and Audi platforms. Guided step-by-step function procedures are built in for VW, Audi, Skoda, and SEAT, walking technicians through complex operations that would otherwise require factory tooling or dealer access.
Online Coding — Benz, BMW, VW/Audi, Porsche, and More
Online Coding allows the Phoenix Smart to access manufacturer servers and write coding changes to a vehicle's control modules — enabling or disabling features, adapting modules after replacement, and performing functions that require live manufacturer authentication. Supported platforms include:
- Mercedes-Benz (SCN Coding)
- BMW
- VW, Audi, Skoda, SEAT
- Porsche
- Renault
Offline Programming — Ford, Mazda, Vauxhall, and Opel
In addition to cloud-based online programming, the Phoenix Smart supports offline module programming for Ford, Mazda, Vauxhall, and Opel — performing ECU flash operations without requiring a live server connection. This keeps you productive even in environments with limited internet access.
Flash Hidden Functions Across 9+ Brands
The Phoenix Smart can access and unlock factory-hidden features on supported vehicles — functions that exist in the vehicle's software but are disabled from the factory. Supported brands for hidden function activation include Mercedes-Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Jeep, Dodge, Chrysler, Toyota, and Honda. Examples include enabling Video-In-Motion via DVD or USB input and disabling the seatbelt warning chime. This is a high-value customer-facing service that few independent shops are equipped to offer.
Built-In Repair Data for Benz, BMW, VW/Audi, and Porsche
The Phoenix Smart includes factory-level repair data for Mercedes-Benz, BMW, VW, Audi, and Porsche (2011 and newer), accessible directly from the diagnostic screen alongside fault code results. Technicians can pull wiring diagrams, component locations, repair procedures, and technical service bulletins without leaving the tool — keeping the workflow moving without switching between the scan tool and a separate repair database subscription.
Remote Desk for Live Technical Support
The Remote Desk feature allows TOPDON's technical support team to connect to the Phoenix Smart remotely over Wi-Fi and assist with a procedure in real time — viewing the screen, navigating menus, and walking through a programming or coding operation alongside the technician. For complex jobs on unfamiliar platforms, this is a meaningful safety net that keeps you from getting stuck.
The Phoenix MDCI Pro — Advanced Protocol Coverage
The Phoenix Smart ships with the Phoenix MDCI Pro VCI, which supports the full range of modern and emerging communication protocols required for late-model and future vehicle service:
- J2534 — industry-standard pass-through for ECU reprogramming
- DoIP — Diagnostics over Internet Protocol, required for many 2018+ European vehicles
- CAN FD — higher-speed CAN protocol used in modern GM, Ford, and other platforms
- D-PDU — diagnostic protocol interface standard
- RP1210 — heavy-duty vehicle diagnostics protocol
This protocol coverage means the Phoenix Smart is not just capable on today's vehicles — it's ready for the vehicles rolling into shops over the next several years as these protocols become mainstream.
FCA Secure Gateway, Tesla Support, and ADAS Compatibility
FCA Secure Gateway access is built in, providing compliant professional access for diagnostics and service on Chrysler, Dodge, Jeep, and Fiat vehicles without additional hardware. Tesla diagnostics are also supported via a separate Tesla subscription. The Phoenix Smart is fully compatible with TOPDON's Phoenix ADAS Mobile Package for ADAS calibration services — as ADAS systems become standard on nearly every new vehicle, the ability to perform calibration in-house is increasingly important for staying competitive.
Hardware for All-Day Professional Shop Use
The Phoenix Smart runs Android 10 on a quad-core 2.0GHz processor with 4GB of RAM and 128GB of onboard storage — the most capable hardware in the TOPDON diagnostic lineup. The 10.1-inch 1280×800 touchscreen gives you room to read topology maps, live data streams, and programming screens without squinting. The 12,600mAh battery is rated for all-day use; one technician review noted charging it once a week under daily shop use. Dual-band 2.4 and 5GHz Wi-Fi keeps cloud programming connections fast and stable, and the MDCI Pro connects via Bluetooth for wireless freedom around the vehicle.
Expand With Add-On Tools
The Phoenix Smart is designed as a platform, not just a scanner. It supports a broad range of add-on tools that integrate directly into the diagnostic workflow:
- Heavy-Duty (HD) vehicle diagnostics
- New Energy Vehicle (EV) diagnostics
- ADAS calibration (Phoenix ADAS Mobile Package)
- TPMS service tools
- T-Ninja Box key programmer
- BTMobile ProS battery analyzer
- TC001 thermal imager
- Oscilloscope
- Endoscope
Compatible Accessory
TOPDON BTMobile ProS 12V Battery & System Tester
Pair the BTMobile ProS with your Phoenix Smart to add professional battery and charging system testing — covering battery health, alternator output, and starter performance right from the same tablet.
Shop BTMobile ProSFrequently Asked Questions
How does the Phoenix Smart differ from the TOPDON UltraDiag?
A: The Phoenix Smart is TOPDON's flagship professional scan tool, while the UltraDiag is a capable prosumer-level device. The Phoenix Smart adds cloud-based online programming for 13+ brands, online coding (including Benz SCN and BMW), offline ECU flashing for Ford and Mazda, factory-hidden function activation across 12+ brands, built-in repair data for Benz/BMW/VW/Porsche, Diagnostic Topology Mapping, Remote Desk support, and the MDCI Pro VCI with DoIP and CAN FD protocol support. The UltraDiag includes key programming capability that the Phoenix Smart does not — the T-Ninja Box is the recommended key programmer for Phoenix Smart users. Coverage is also significantly broader on the Phoenix Smart at 200+ brands vs. 100+.
What is cloud-based online programming, and why does it matter?
A: Cloud-based online programming means the Phoenix Smart connects to the vehicle manufacturer's servers over the internet and performs ECU programming using official OE software and calibration data — the same process a dealership technician uses. This is required when replacing or flashing a control module, initializing a new component, or performing certain coding operations that require manufacturer authentication. Without this capability, shops have to send those jobs to a dealer or specialized programming service.
What is Diagnostic Topology Mapping?
A: Topology Mapping displays a graphical overview of every module in the vehicle's communication network on a single screen. Each module is color-coded to show whether it's communicating normally, showing fault codes, or offline — so you can see the entire vehicle system at a glance and go directly to the problem area rather than scanning system by system.
What protocols does the Phoenix MDCI Pro support?
A: The MDCI Pro supports J2534 (industry-standard ECU reprogramming pass-through), DoIP (Diagnostics over Internet Protocol, required for many 2018+ European vehicles), CAN FD (higher-speed CAN protocol used in modern GM, Ford, and other platforms), D-PDU, and RP1210 (heavy-duty vehicle diagnostics). This protocol coverage ensures the Phoenix Smart can communicate with current and next-generation vehicle architectures.
Does the Phoenix Smart support FCA vehicles with Secure Gateway?
A: Yes. FCA Secure Gateway access is built in, allowing compliant professional diagnostics and service on Chrysler, Dodge, Jeep, and Fiat vehicles. An active AutoAuth account is required per FCA policy and is managed separately through AutoAuth.
Is Tesla support included?
A: Tesla diagnostics are supported on the Phoenix Smart but require a separate Tesla subscription fee, which is managed independently. Contact TOPDON or check the Vehicle Coverage Tool for current Tesla subscription details.
Can the Phoenix Smart perform ADAS calibrations?
A: Yes, when paired with TOPDON's Phoenix ADAS Mobile Package (sold separately). The Phoenix Smart provides the diagnostic and software interface for ADAS recalibration procedures, while the Phoenix ADAS Mobile Package provides the physical targets and hardware required for the calibration process.
How long are software updates included, and what is the cost after?
A: The Phoenix Smart includes 2 years of free software updates from the date of purchase, delivered over Wi-Fi directly to the tablet. After the free update period, continued updates are available for $795 per year.
What is included in the box?
A: The Phoenix Smart ships with the diagnostic tablet, Phoenix MDCI Pro VCI, OBDI adapter box transfer line, OBDII extension cable, cigarette lighter cable, Type-C to USB cable, battery clamps and cable set, a 10-piece non-16-pin adapter cable kit, assorted fuses, a Type A to B cable, and a user manual.
