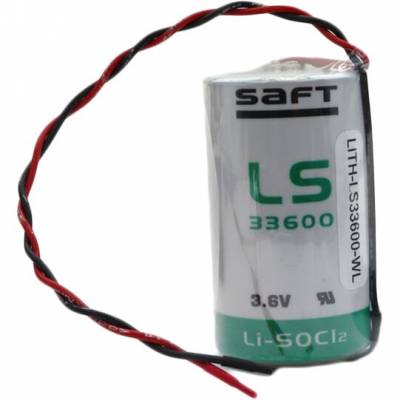

Product Specifications for LITH-LS33600-WL 3.6V D-Size Lithium Battery with Wire Leads
| BM Part #: | LS33600-WL |
|---|---|
| Voltage: | 3.6 Volt |
| Capacity: | 17,000 mAh |
| Energy Capacity: | 61.2 Wh |
| Type: | Li-SOCl2 |
| Battery Size: | D |
| Length: | 2.42" |
| Diameter: | 1.35" |
| Shipping Weight: | 0.15Lbs (2.4 oz) |
| Warranty: | 60 Day Return |
- Direct SAFT LS33600 Replacement: Matches the original spec exactly, so installation is straightforward with no modifications required.
- 6-Inch Wire Leads Included: Pre-attached leads make connecting to your equipment quick and easy — no soldering needed.
- 17,000 mAh High Capacity: Delivers long-lasting power to keep industrial systems running between service intervals.
- Stable Voltage Output: Maintains consistent power throughout its entire discharge cycle, protecting sensitive equipment from voltage fluctuations.
- Wide Temperature Range: Performs reliably from -76°F to +185°F, handling extreme environments without compromise.
- Up to 10-Year Shelf Life: Stores for years without significant power loss, so spares are ready when you need them.
Product Description
When critical equipment needs power it can count on year after year, the LITH-LS33600-WL delivers. This 3.6V D-size lithium battery is an exact replacement for the SAFT LS33600 and LS-33600, and comes pre-fitted with 6-inch wire leads for easy drop-in installation without soldering or adapters.
Built for Long-Term Industrial Use
The LITH-LS33600-WL uses lithium thionyl chloride chemistry — the same chemistry trusted in demanding industrial settings worldwide. This means you get a battery that holds an impressive 17,000 mAh of capacity while maintaining a steady, stable voltage from start to finish. Unlike standard alkaline batteries that lose power gradually over time, this battery keeps equipment running at full strength until it's spent.
That consistency makes it a natural fit for applications where reliability isn't optional:
- Programmable Logic Controllers (PLCs)
- Utility and gas meters
- Memory backup systems
- Industrial sensors and monitoring equipment
Ready for the Toughest Conditions
Temperature extremes are no problem for this battery. It operates reliably anywhere from -76°F to +185°F, making it suitable for outdoor installations, cold storage environments, and high-heat industrial settings alike. Add a shelf life of up to 10 years, and you have a battery that stays ready even when it's been sitting in storage.
A Trusted Direct Replacement
Finding the right industrial battery shouldn't slow down your operation. The LITH-LS33600-WL matches the SAFT LS33600 spec-for-spec, so there's no guesswork involved. The 6-inch wire leads connect directly to your equipment's battery terminals, simplifying the swap and getting your system back online fast.
Frequently Asked Questions
What devices is the LITH-LS33600-WL compatible with?
A: This battery is designed for PLCs, utility meters, memory backup systems, and a wide range of industrial equipment that use the SAFT LS33600 or LS-33600. If your device lists either of those as the required battery, this is a direct replacement.
Can this battery be recharged?
A: No. The LITH-LS33600-WL is a primary (non-rechargeable) lithium battery. Attempting to recharge it could be dangerous and will damage the cell.
How long are the wire leads?
A: The battery comes with 6-inch wire leads pre-attached, giving you enough reach to connect to most standard terminal configurations without additional wiring.
How should I store this battery if I'm not using it right away?
A: Store it at room temperature in a cool, dry location away from direct sunlight and metal objects. Properly stored, the LITH-LS33600-WL retains its charge for up to 10 years.
Is this battery safe to use in outdoor equipment?
A: Yes. Its operating range of -76°F to +185°F makes it well-suited for outdoor installations, including meters and sensors exposed to seasonal temperature swings.
