Free Economy ShippingProduct Specifications for TOPDON BT200 12V Battery & 12V/24V Charging System Tester
| BM Part #: | BT200 |
|---|---|
| Length: | 7" |
| Width: | 3.72" |
| Height: | 1.3" |
| Shipping Weight: | 3.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- BT200
- User Manual
- Complete 12V and 24V Testing: Tests battery health (SOH/SOC), cranking performance, and charging system output on both 12V and 24V systems — covering the full picture of what keeps a vehicle starting and running reliably.
- All Lead-Acid Battery Types Supported: Compatible with Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB, and VRLA batteries across a 100–2,000 CCA / 30–220 Ah testing range and 10 international battery standards.
- 99.5% Testing Accuracy: Delivers highly accurate SOH and SOC readings by measuring both voltage and cold cranking amps — not just a simple voltage check.
- 3 LED Status Indicators: Instant GOOD, CHARGE, or BAD status lights give you a fast visual result alongside the detailed on-screen data for quick, confident assessments.
- 2.4-Inch Color LCD Display: Bright, easy-to-read screen delivers clear results in any lighting condition — sunlight, dim shop light, or roadside use.
- No App or Pairing Required: Powers directly from the vehicle through the test clamps with built-in reverse polarity and short circuit protection — clamp on and start testing immediately, no setup needed.
Product Description

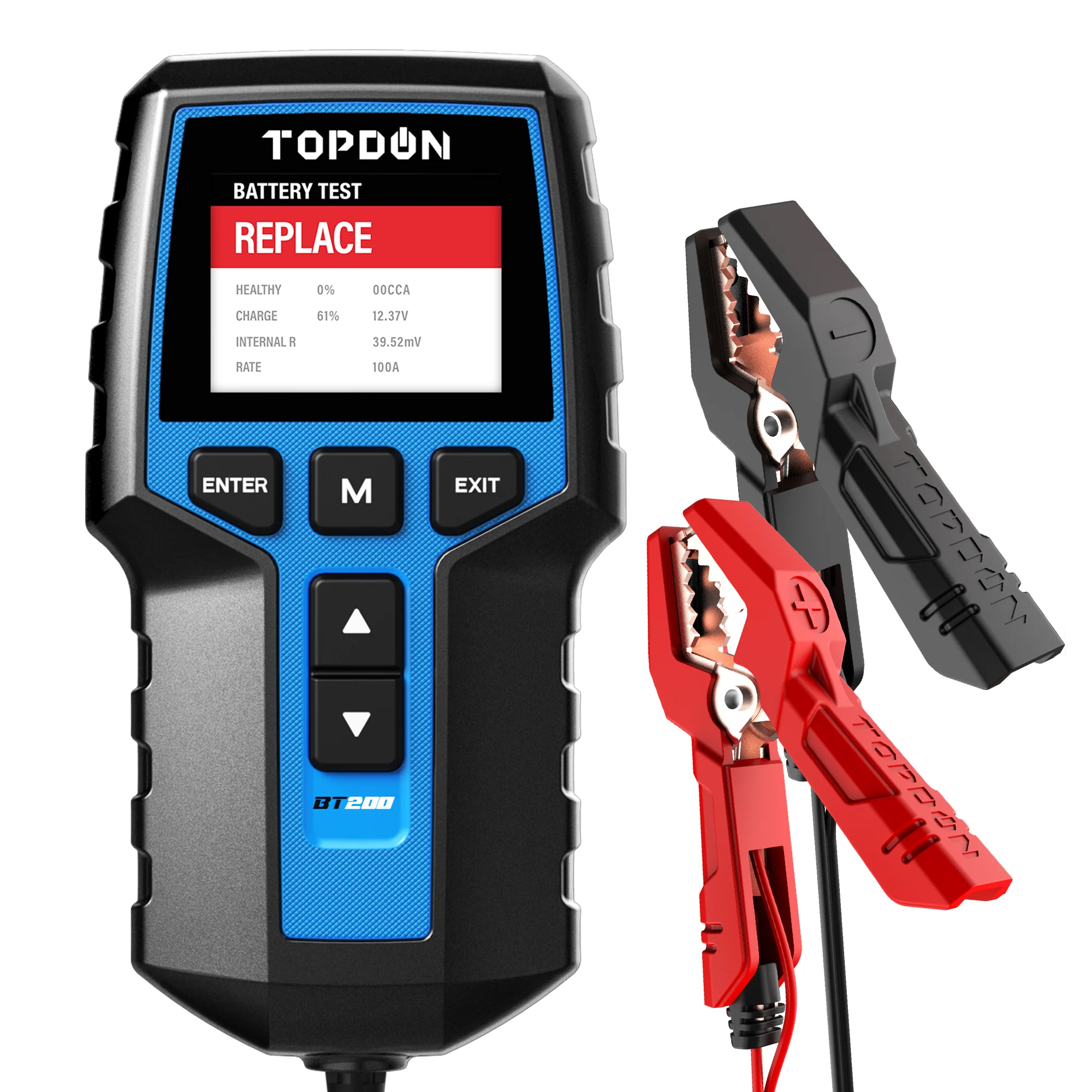

The TOPDON BT200 is a no-fuss battery and charging system tester built for drivers, DIYers, and shop technicians who want fast, reliable answers without the learning curve. Clamp it onto the terminals and within seconds you'll know whether your battery is healthy, your alternator is doing its job, and your starter is pulling power the way it should — all from a single compact tool with a bright color display.
Battery Testing That Covers Every Lead-Acid Type
The BT200 tests both 12V and 24V batteries across all common lead-acid chemistries: Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB, and VRLA. It measures State of Health (SOH) and State of Charge (SOC) by evaluating voltage and cold cranking amps, giving you a complete picture of the battery's condition rather than just a voltage snapshot. The testing range covers 100 to 2,000 CCA and 30 to 220 Ah (GB), making it equally useful for a compact car battery and a heavy-duty commercial vehicle battery.
Ten international battery standards are supported — CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, and GB — so regardless of where the battery was made or how it's rated, the BT200 can test it accurately. Results are displayed on screen with detailed readings, and three LED indicators (GOOD, CHARGE, or BAD) give you an at-a-glance status the moment the test completes.
Cranking Test to Check Starting Performance
Cold starts and high-load cranking put more strain on a battery than almost anything else. The BT200's cranking test measures voltage drop and crank time under load on both 12V and 24V systems, showing you exactly how much power the battery is delivering at startup and whether it's holding up the way it should. If a battery is beginning to fail under cranking load before it shows any other symptoms, the BT200 will catch it — before you're stranded with an engine that won't turn over.
Charging System Test to Isolate Alternator and Regulator Issues
A weak or dead battery isn't always the battery's fault. The BT200's charging test checks the health of the charging system by analyzing loaded and unloaded voltage, identifying problems with the alternator, voltage regulator, or wiring connections that may be preventing the battery from fully charging. Knowing whether the issue is the battery or the charging system saves you from replacing a perfectly good part — or leaving the actual problem unresolved.
99.5% Accuracy on a Bright 2.4-Inch Color Display
The BT200 delivers 99.5% testing accuracy, giving you readings you can act on with confidence. Results are shown on a 2.4-inch color LCD that's easy to read in direct sunlight, low shop lighting, or anywhere in between. The display shows detailed test data clearly without having to squint or interpret cryptic readouts, and the interface is straightforward enough that no prior experience with battery testers is needed to get useful results.
Clamp and Go — No App, No Pairing, No Setup
The BT200 powers itself directly from the vehicle's battery through the test clamps — there's no internal battery to charge and nothing to pair or configure before use. Connect the clamps, select your battery type and rating standard, and the BT200 is ready to run. The built-in reverse polarity protection and short circuit protection mean you can connect quickly without worrying about damaging the tester or the vehicle's electrical system. Available in 8 languages: English, Spanish, French, German, Italian, Portuguese, Russian, and Japanese.
Frequently Asked Questions
What types of batteries can the BT200 test?
A: The BT200 tests all common lead-acid battery chemistries: Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB, and VRLA. It supports both 12V and 24V batteries across a range of 100 to 2,000 CCA and 30 to 220 Ah (GB rating). It does not test lithium-based batteries.
What battery rating standards does the BT200 support?
A: The BT200 supports 10 international battery rating standards: CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, and GB. This broad standard compatibility means you can accurately test batteries regardless of where they were manufactured or how they are rated.
What is the difference between the battery test, cranking test, and charging test?
A: The battery test evaluates the battery's overall health and state of charge by measuring voltage and cold cranking amps under a controlled load. The cranking test measures voltage drop and crank time under real startup conditions to assess whether the battery can reliably deliver power at ignition. The charging test checks the alternator and voltage regulator by analyzing loaded and unloaded voltage to confirm the charging system is keeping the battery topped up properly between starts.
Does the BT200 require an app or Bluetooth pairing?
A: No. The BT200 is a fully standalone device that requires no app, no smartphone, and no pairing of any kind. It draws power directly from the vehicle through the test clamps and is ready to use immediately after connection.
Is the BT200 safe to use if I accidentally reverse the clamps?
A: Yes. The BT200 includes built-in reverse polarity protection and short circuit protection, so connecting the clamps backward or an accidental short will not damage the tester or the vehicle. The unit will alert you to the incorrect connection so you can correct it before testing.
What languages does the BT200 support?
A: The BT200 supports 8 languages: English, Spanish, French, German, Italian, Portuguese, Russian, and Japanese.
What is included in the box?
A: The BT200 ships with the tester unit (with attached test clamps) and a user manual.
What is the warranty on the BT200?
A: The BT200 comes with a 1-year manufacturer's warranty.
