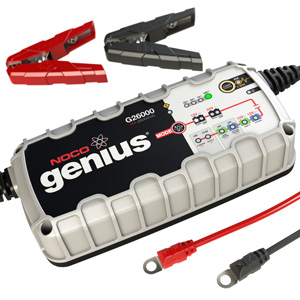

Product Specifications for NOCO Genius 12/16/24 Volt, 26 Amp Multi-Purpose Battery Charger
|BM Part #:||G26000|
|Capacity:||12V @ 26 Amps / 24V @ 13 Amps|
|Warranty:||5 Year Limited (PDF)|
What's in the box:
- G26000 Battery Charger with Engine Start
- GC032 Battery Clamps with Integrated Eyelets
- Owner's manual and user guide (View PDF)
- Warranty Information
- A 12V and 24V automatic battery charger and maintainer.
- Charges lead-acid and lithium-ion batteries up to 500 amp-hours.
- Recovers deeply discharged batteries down to 2-volts.
- Spark-proof technology and reverse polarity protection.
- Built-in battery desulfator to recover worn-out batteries.
- Safely monitors battery activity with zero overcharge.
- Advanced diagnostics indication for damaged batteries.
- Progressive repair mode for heavily sulfated 12V batteries.
- Power supply for changing a car battery or powering 12V devices.
- Jumpcharge engine starting for dead batteries.
- Charge 16V AGM and lithium-ion batteries.
The G26000 is a smart, 15 Step, fully automatic switch-mode battery charger and maintainer. The G26000 restores batteries to their original capacity, recovers slightly sulfated batteries, charges batteries in cold climates, rescues drained batteries, and provides maintenance charging to increase battery life. A powerful battery charger with specialized charging modes for recovering severely drained batteries that will not accept a normal charge and the ability to perform an equalization charge. The G26000 comes equipped with a remote temperature probe for optimized charging performance. Suitable for most 12V and 24V battery capacities from 25-500Ah, such as Motorcycles, ATVs, UTVs, Snowmobiles, Jet Skis, Cars, RVs, Boats and Trucks.
Powered by NOCO VosFX Processor
The VosFX Processor is a revolutionary smart processor utilizing sophisticated levels of intelligence to alter the charge process, based on organic feedback from the battery, to extend battery life. The VosFX Processor quickly and efficiently makes decisions on how to charge the battery without risking user safety or damage to the battery.
Wicked Smart Features:
- 12V/24V Compatibility
Charges 12V and 24V batteries
Returns to last selected mode when restarted
- Fully Interactive
Automatically adjusts itself to changing current needs
- Designed for Safety
Reverse polarity, short circuit, open circuit, spark proof, overheat, overcurrent, and overcharge
- Multiple Battery Chemistry
Safely chargers Wet, Gel, MF, and AGM batteries
- Extendable Connectors
Plug-n-play connectors for easy accessory changes
- HF/HE Switch Mode Design
High-frequency, high-efficiency for a lightweight, compact charger
- Rapid Charging Technology
Charges batteries 2X faster than traditional linear battery chargers
- Variable Input Compensated
100% full charge even with varying A/C input voltages
- Abnormality Protection
Automatically shuts "off" if charger remains in Bulk charge mode for an extended period of time
- Recovery Mode
Recovers deeply discharged & sulphated batteries with pulse charging
- Cold/AGM Mode
Optimized charge mode for cold weather or AGM batteries
- 16V and 32V Boost Mode
Helps recover deeply discharged or sulphated batteries for 12V & 24V
- 13.6V Equalization and Supply Mode
Charge mode for maximizing battery capacity, reviving low voltage batteries & can act as a power supply
- Calcium Mode
Charge mode designed for calcium batteries
- Silent Night Mode
Disables the charger's internal fan for quiet nighttime operation
- Step 1: Diagnostics
Checks the battery voltage to make sure battery connections are good and the battery is in a stable condition before beginning the charge process.
- Step 2: Recovery
Initializes the Recovery process, if needed, for deeply discharged or sulfated (desulfation) batteries by pulsing small amounts of current.
- Step 3: Soft Start
Begins Bulk charging process with a gentle (soft) charge.
- Step 4-7: Bulk
The Bulk charging process continues using Max Rate, High Rate, Medium Rate and Low Rate charges and returns 80% of battery capacity, indicated by the 25%, 50% and 75% CHARGE LEDs.
- Step 8: Absorption
Brings the charge level to 90%. The battery charger will deliver small amounts of current to provide a safe, efficient charge and limit battery gassing.
- Step 9: Trickle
Battery is fully charged and ready to use, indicated by the 100% CHARGE LED being a solid Green. In this step, the battery charger will only deliver enough current to keep the battery full. If the battery tells the charger that more current is needed, the battery charger will switch to Maintenance.
- Step 10: Maintenance
Continuously monitors the battery voltage to determine if a Maintenance charge should be initiated. If the terminal voltage falls below 12.8V (12V) and 25.6V (24V), the charger will start the Maintenance cycle until voltage reaches 14.4V (12V) and 28.8V (24V) and then discontinues the charge cycle. The cycle between Trickle and Maintenance is repeated indefinitely to keep the battery at full charge, without overcharging. The battery charger can be left connected indefinitely.
- Step 11: 13.6V Supply
The 13.6V SUPPLY mode is used for low voltage batteries, maintenance charging or as a power supply.
- Step 12: 13.6V Equalization
The 13.6V EQUALIZATION is used to provide an equalization charge by delivering a constant voltage of 13.6V.
- Step 13: Silent Night
The SILENT NIGHT is used to provide quiet operation by reducing the charging current to 5A (5000mA) and disabling the internal cooling fan.
- Step 14: 16V Boost
The 16V BOOST mode is used to recover battery capacity from a stratified (sulfated) battery by applying a specialized high 16.5V (17V Max) voltage to soften and melt down sulfate from the battery plates so that the material becomes usable again.
- Step 15: 32V Boost
The 32V BOOST is used to recover battery capacity from a stratified (sulfated) battery by applying a specialized high 33V (34V Max) voltage to soften and melt down sulfate from the battery plates so that the material becomes usable again.
