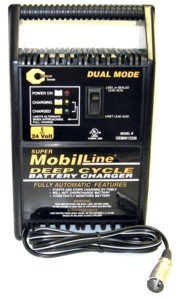

Product Specifications for Cliplight XLR 24 Volt 5 Amp Battery Charger
|BM Part #:||24054-XLR|
Cliplight XLR battery charger with 3 Pin XLR Connector for mobility scooters and wheelchairs
Fully Automatic two-stage 24 volt 5 amp battery charger, UL and CSA approved, Dual Mode (for gel/sealed and wet batteries). The Cliplight XLR battery charger is specially designed for Industrial and OEM applications such as Mobility aids, wheelchairs, scooters and electric bicycles among others.
Selectable charge mode: A switch permits the user to select the type of charge required for either Gel or Wet Lead-acid. These voltage settings are identified above in the output ratings.
Full 3 LED Display: Indicators display the battery's condition. As a battery reaches full charge, the yellow and green lights will flash alternately. This automatic cycling of the charger prevents overcharging, as the battery reaches its full capacity. Once fully charged the charger will continue to cycle with yellow and green lights flashing alternately, keeping the battery at its peak capacity.
- Red Light: Indicates the charger is properly connected to 120V supply.
- Yellow Light: Indicates correct polarity and combined with red light indicates charger is charging.
- Green Light: Indicates a full charge. Green and yellow will flash alternately when battery has reached a full charge (The yellow light will flash on about every 10 seconds)
Protection: The charger has electronic protection against reverse polarity and short circuits. The overload protection is provided by two fully automatic re-settable bimetallic circuit breakers. One protecting against excess current flow and the other from excess temperature rise.
Charging: The charger is capable of charging all commonly available Lead Acid batteries with ratings from 20 to +100 Ah. All functions are fully automatic and the charger constantly monitors the battery's condition. The charging sequence is determined by the condition of the battery and is fully interactive.
Battery Recovery: (deep discharge pick-up) The 24 volt 5 amp battery charger is capable of fully and properly recharging any battery discharged down to 10 Volts. Even a totally discharged battery will recover to 20 Volts in 10 to 60 minutes, when the load is removed.
No risk of shock: The Cliplight XLR battery charger case is made from advanced engineering plastic. Due to its double insulation, a grounding pin is not required and hence the input connector has only two pins (we have an international standards approval on this model).
- OUTPUT: 25 Volt Nominal; 5 Amp DC
- Set Voltage: Gel: 28.6 +/- 0.2 WET LEAD ACID: 29.9 +/-0.2
- Float Voltage: 27.2 +/- 0.2 28.8 +/-0.2 Volt
- INPUT: 105 VAC - 120 VAC ; 60 Hz
- DIMENSIONS: 6" wide x 11" high x 4" deep
- 15cm x 27.5cm x 10cm deep
- 1 Year Warranty
- 24V 5A
- 24Volt 5Amp
