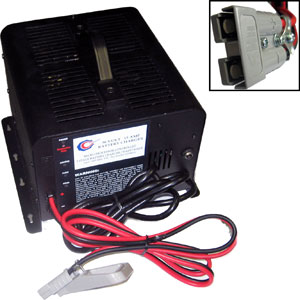

36 Volt, 15 Amp
Five stage microprocessor based charger for use in applications from charging to maintenance for motive power batteries commonly used in; Industrial equipment, golf carts, lifts, tugs, among others.
General Specifications
- Output: 36 Volts DC / 15 Amp DC (nominal)
- Input: 120 Volts AC, 10 Amps, 60 Hz Input
- Also available in 230 Volts AC, 50 Hz & 100VAC
Features
- 4 LED Display: Indicates power, charge mode and if weak battery is present
- Battery Types: Large capacity Lead-acid batteries (+100 Ampere / Hours)
- Backup Protection: Reverse battery, short circuit, input overload, and over temperature. Power LED flashes in reverse polarity or short circuit conditions.
- Qualification Test: Test for shorted cells, sulfated battery and high internal resistance before charging batteries.
- Constant Current Mode: Charges at "Constant current" until the battery voltage reaches the "Equalization stage" and then switches to the "Constant voltage mode".
- Constant Voltage Mode: Charges at "Constant Voltage" until the battery reaches 100% charge and then switches to a reduced constant voltage charge level labeled as "Float mode".
- Weak Battery Indicator: Red LED labeled "weak" indicates battery is weak 5 minutes after charge.
- Agency: UL & CuL available upon request
NOTE: Regulating Parameters, Safety Timer Values, Charge Algorithms, Output Lead Assemblies and Accessories can be altered, at the factory, to suit your particular application and requirements. Call today to receive a personalized quote and/or to speak with one of our representatives who would be happy to help you with your application questions. |
