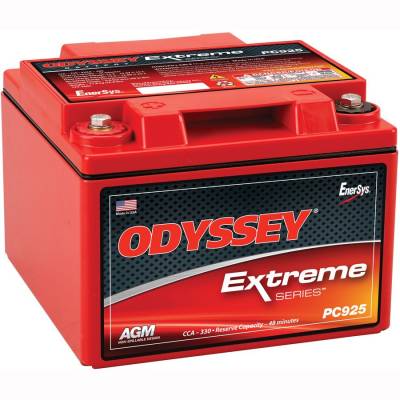

Odyssey PC925LMJ Battery with Metal Jacket
Item #: PC925LMJ   |    In Stock

Odyssey PC925LMJ Battery with Metal Jacket
zoom in

Odyssey PC925LMJ Battery with Metal Jacket

Item #: PC925LMJ   |  In Stock


Today's Price: $169.95
Free Shipping! Free Shipping

Today's Price: $169.95

Best Value
Free Shipping
2-3 Year (Warranty Info) Warranty
Brand New
100% Compatibility

Product Specifications for Odyssey PC925LMJ Battery with Metal Jacket

BM Part #: PC925LMJ
Made In: U.S.A.
Voltage: 12 Volt
Capacity: 28 Ah
Type: AGM
Length: 6.64"
Width: 7.05"
Height: 5.04"
Cold Cranking Amps: 330 CCA
Shipping Weight: 26.00Lbs
Warranty: 2-3 Year (Warranty Info)

Additional Specs:

  • 330 CCA, 480 MCA, 610 HCA
  • 900 Cranking Amps for 5 Seconds
  • 53 Minute Reserve Capacity
  • Cycle life @ 77° F 400 at 100% DOD
  • -40° F to 140° F Temperature Range
  • Replaces 278001763, 278001882, 278001882, 515176151, 66010-97C
  • More Specs: (Adobe PDF)
  • Catalogue number 0765-2028
  • Made in the USA
  • The Odyssey L Terminal Adapters may be required by some models to connect to the Odyssey battery. (Sold separately)
  • For Maintaining This Battery: The Odyssey OBC-6A charger can be used.
  • For Ongoing Deep Cycle Recovery: The Odyssey OBC-12A charger is recommended.

Odyssey trademark is the property of Enersys and affiliates.

  • Made in the USA. Why it matters:
    • If every American spent $64 on something made in America, we could create 200,000 jobs right now.
  • Better warranty
    2 Years:
    • Auxiliary Power Unit (APU)
    • Non-engine Start Cycling Applications.
    • PowerSports Applications.
    3 Years for Non-BCI Sized:
    • Commercial, Industrial, Marine and Automotive Applications
  • Longer service life
    With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation.
  • Longer cycle life
    70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time.
  • Longer shelf life
    Can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first.
  • Faster recharge
    The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours.
  • 2 Batteries in 1
    The characteristics of two separate batteries are combined in one box. It can deep cycle (be recharged) as well as provide enormous cranking power.
  • Superior cranking
    The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F).
  • Mounting flexibility
    Non-spillable design - can be mounted on any side in any position except inverted.
  • Vibration resistance
    Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure.
  • Extreme temperature tolerance
    Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket.
  • Totally maintenance free
    No need to add water, ever! Drycell design with resealable venting system.
  • Improved safety
    US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
  Little known fact:
Replacement batteries and accessories have the same performance standards as OEM batteries but are significantly cheaper. Why?
Because OEM manufacturers know they can get away with marking up prices 80% (and more) and people will still buy from them. Smart shoppers don't fall for that.
Free Standard Shipping

Order today and receive free standard shipping on your Odyssey PC925LMJ Battery with Metal Jacket. Only valid in the continental 48 states and not valid with any other offer. Physical address required (No PO Boxes).

New! Odyssey PC925 with positive terminal reversed.

Direct fit HARLEY DAVIDSON 1997 and later FLHR, FLHT & FLTR battery. Here is a OEM comparison image.

2 Batteries in 1

The Odyssey PC925LMJ battery combines in one box the characteristics of two separate batteries. It can deep cycle (be recharged) as well as provide enormous cranking power.

Military Grade

Only Hawker Odyssey batteries are based on the same battery technology offered by Hawker to the military for aircraft and tank batteries. Odyssey batteries are of military grade and have endured rigorous tests that demonstrate their overall ruggedness and exceptional tolerance of mechanical abuse.

Superior cranking and fast charge capability

The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as - 40° C. Also, with simple constant voltage charging (alternator or independent charger), there is no limitation on the inrush current, so the user is assured of a fast charge.

  • Drycell Battery
  • With Metal Jacket: Provides a slightly higher operating temperature range, slightly more vibration resistance, and protection again debris that may hit the battery (when used in compatible applications).
  • 12 Volt
  • 26 Ah @ 10hr rate
  • 330 CCA
  • 480 MCA
  • 610 HCA
  • 900 Cranking Amps for 5 Seconds
  • 53 Minute Reserve Capacity
  • Catalogue number 0765-2028
  • Cycle life @ 77° F 400 at 100% DOD
  • -40° F to 140° F Temperature Range
  • More Specs: (Adobe PDF)
  • Made in the USA


  • 3 to 10 year service life, when properly maintained.
  • 99.9% pure lead providing minimal plate corrosion
  • Explosion proof
  • Corrosion proof
  • 2 to 3 times the cranking power of equivalent size battery
  • Spill and leak proof
  • Superior vibration resistance
  • Fully Charged out of the box
  • When fully charged can be stored for up to 2 years at 77° F
  • May be installed on its sides at any angle without sacrificing performance attributes
  • Military grade version of the Hawker Genesis
  • 2 Year Full Powersports Warranty
  • Made in the USA

Note: Please check dimensions and terminal configuration to ensure this is the proper battery for your application.

L Adapter, Installed
Click to enlarge

Tech Tip: Special Installations

Mounting flexibility is one of the Odyssey battery's strongest features. It may be installed in just about any orientation (the only exception being inverted) without sacrificing any of it's world-class performance attributes. Have no fear about acid spillage-- the battery recycles internal gas during operation/charging and the valve regulated design eliminates the need for an acid vent tube. All in all, this offers two awesome benefits:

  1. The battery can be installed in applications where it wouldn't normally fit. Just flip it on its side and fit it into your battery box ("L" terminal adapters may be useful for ease of installation in these cases... be sure to double check your application!)
  2. The lack of acid eliminates the fear of acid burns or damage to your expensive chrome and paint. You're installing an Odyssey battery because you love your vehicle. You shouldn't have to be concerned with things like leakage.
49 Reviews | 4.8 out of 5
5 stars (40)
4 stars (7)
3 stars (2)
2 stars (0)
1 star (0)
Would recommend this product.
What our Customers are saying
May 25, 2017
by on May 25, 2017

Got my battery for my electraglide ultra and couldnt be happier. The extreme battery starts my bike like never before. Fantastic guallity and fast delivery.

Would recommend to a friend?
Odyssey Battery
May 19, 2017
by on May 19, 2017

Installed battery in my 2003 Roadking CVO,did not need the L-brackets that others recommended,bike fired right up after setting all winter better than it ever has,I would recommend this battery to anyone needing a new one!

Would recommend to a friend?
Odyssey PC 925LMJ M/C battery
May 11, 2017
by on May 11, 2017

Battery fit perfectly in my HD Limited. Had to buy the accessory lugs as battery cables would not bend enough to fit on battery lugs. Installation would be much easier if lugs were threaded where cables connect as it is difficult to hold the bolt, lock washer cable and nut at the same time.
Battery really cranks the motor over much faster than original.

Would recommend to a friend?
Motorcycle battery
April 23, 2017
by on April 23, 2017

Fit great on my 2009 Road King. Plenty of power and spins the motor without hesitation. Need to order L brackets for easier fit.

Jesus Is Lord
Central, South Carolina
Would recommend to a friend?
Starts Big Inch Harley
April 14, 2017
by on April 14, 2017

My old battery tested good voltage wise, but had a problem turning over my Harley. its a High Compression 117 cu in with a 1.6 K starter. I tried many tricks, keeping a battery tender on it, hooking up a jump box etc. but still would have a problem . So I finally broke down and bought a new Odyssey 925LMJ with the metal jacket. this battery has to be put in on its side but fits fine.
After installing the new battery I hit the starter button and it started so fast it scared me. I had gotten used to holding my breath when hitting the start button, hoping the engine didn't kick back and blow out the starter. this has happened many times in the past. Although the old battery tested good voltage wise I guess it just didn't have the power to turn over the engine.
I would recommend this battery to anyone needing a new one. Time will tell how long it lasts, but for now I am very happy with how it works and I am much more confident that I will not be stranded by a bike that won't start.

Pittsburgh PA
Would recommend to a friend?
Please Add to UTV list of avalibilty
January 25, 2017
by on January 25, 2017

First I would like to say that you could sale more of these battery's if they would list the Oreion Reepers and Epic (Also same as Duruxx D-2 and D-4 vehicle) to use this battery mounted on its side with a side bracket and SAE post kit. The PC925LMJT is the perfect size but are not commonly stocked. So the PC925LMJ with a side bracket and SAE post kit is cheaper value according to your pricing guide.You must change out the ground side battery post connection with a standard SAE negative size to fit the new post of a larger size. The factory battery (DF model number 36B20RMF) has a lead ground post that is the same length as a SAE post but is only about 1/4" in diameter. A size that I have never seen on a battery of this size. About half the diameter of the positive post. The battery was manufactured by Yangzhou Apollo Battery Co. LTD. So the change of the ground cable end change is a must and the battery mounted on its side like a Harley Davidson does with a PM925 Odyssey in the large glide bikes. I have posted this information on our forum and told others of how to do this battery change and fitment. You can see pictures on the forum at reeperownersforum.com under the General discussion heading and Battery Replacement topic or this is the page address if you wish to use. http://reeperownersforum.com/thread/978/replacement-battery-led-headlamps

DFW area Texas
Would recommend to a friend?
Metal Jacket battery
December 15, 2016
by on December 15, 2016

Great battery I bought several.

Would recommend to a friend?
The Odyssey PC925LMJ Battery with Metal Jacket has been cross-referenced to be compatible with or replace these OEM part numbers and models:
