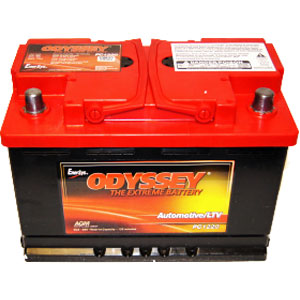

Odyssey PC1220 Battery
Item #: PC1220   |    In Stock
Be the first to Write a Review

Odyssey PC1220 Battery
zoom in

Odyssey PC1220 Battery

Item #: PC1220   |  In Stock
Be the first to Write a Review

Today's Price: $256.95

Today's Price: $256.95

Best Value
4 Year (Warranty Info) Warranty
Brand New
100% Compatibility

Product Specifications for Odyssey PC1220 Battery

BM Part #: PC1220
Voltage: 12 Volt
Capacity: 64.8 Ah
Type: AGM
Length: 11.13"
Width: 6.88"
Height: 7.48"
Cold Cranking Amps: 680 CCA
Shipping Weight: 50.00Lbs
Warranty: 4 Year (Warranty Info)

Additional Specs:
  • DIN Lead Post Terminals
  • 680 CCA, 860 MCA, 960 HCA
  • 1220 Cranking Amps for 5 Seconds
  • 135 Minute Reserve Capacity
  • Cycle life @ 77° F 400 at 100% DOD
  • -40° F to 140° F Temperature Range
  • More Specs: (Adobe PDF)
  • Group 48 and Group 94R

Odyssey trademark is the property of Enersys and affiliates.

  • This item is not eligible for free shipping.
  • Better warranty
    4 Year BCI Sized Engine Starting Applications.
  • Longer service life
    With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation.
  • Longer cycle life
    70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time.
  • Longer shelf life
    Can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first.
  • Faster recharge
    The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours.
  • 2 Batteries in 1
    The characteristics of two separate batteries are combined in one box. It can deep cycle (be recharged) as well as provide enormous cranking power.
  • Superior cranking
    The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F).
  • Mounting flexibility
    Non-spillable design - can be mounted on any side in any position except inverted.
  • Vibration resistance
    Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure.
  • Extreme temperature tolerance
    Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket.
  • Totally maintenance free
    No need to add water, ever! Drycell design with resealable venting system.
  • Improved safety
    US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
  Little known fact:
Replacement batteries and accessories have the same performance standards as OEM batteries but are significantly cheaper. Why?
Because OEM manufacturers know they can get away with marking up prices 80% (and more) and people will still buy from them. Smart shoppers don't fall for that.

PC 1220 Design:

  • 70% longer cycle life
  • Longer shelf life
  • Fast recharge - capable of 100% recharge in 4-6 hours
  • Mounting flexibility - non-spillable design
  • Extreme temperature tolerance
  • Totally maintenance free
  • Longer service life: 3 to 10 years, when properly maintained.
  • 4 Year Warranty (Warranty Info)

Performance Features and Specifications:

  • Voltage: 12 Volt
  • PHCA: 1,220A at 80°F (27°C); for 5 seconds
  • CCA: 680A at 0°F (-18°C)
  • CA/MCA: 860A at 32° (0°C)
  • HCA: 960 at 80°F (27°C)
  • Capacity (at 10hr rate): 64.8Ah
  • Reserve capacity: 135 minutes on 25amps
  • Short circuit current: 2,200A
  • Deep cycling capability: 400 at 80% DOD
  • Dimensions: 11.89L x 6.88W x 7.48H
  • Battery Weight: 45.6lbs
  • Terminal: DIN Lead Post
  • Internal Resistance: 5.7 ohms
  • Design life: 12 years
  • Typical service life: 6 to 8 years
  • Group 48 and Group 94R

2 Batteries in 1

The Odyssey PC1220 battery combines in one box the characteristics of two separate batteries. It can deep cycle (be recharged) as well as provide enormous cranking power.

Military Grade

Only Hawker Odyssey batteries are based on the same battery technology offered by Hawker to the military for aircraft and tank batteries. Odyssey batteries are of military grade and have endured rigorous tests that demonstrate their overall ruggedness and exceptional tolerance of mechanical abuse.

Superior cranking and fast charge capability

The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as - 40° C. Also, with simple constant voltage charging (alternator or independent charger), there is no limitation on the inrush current, so the user is assured of a fast charge.

The Odyssey PC1220 Battery has been cross-referenced to be compatible and replace these OEM part numbers and models:
