The G7200 is a smart, 12 Step, fully automatic switch-mode battery charger and maintainer. The G7200 restores batteries to their original capacity, recovers slightly sulfated batteries, charges batteries in cold climates, rescues drained batteries, and provides maintenance charging to increase battery life. A powerful battery charger with specialized charging modes for recovering severely drained batteries that will not accept a normal charge. Suitable for most 12V and 24V battery capacities from 14-230Ah, such as Motorcycles, ATVs, UTVs, Snowmobiles, Jet Skis, Cars, RVs, Boats and Trucks.
Powered by NOCO VosFX Processor
The VosFX Processor is a revolutionary smart processor utilizing sophisticated levels of intelligence to alter the charge process, based on organic feedback from the battery, to extend battery life. The VosFX Processor quickly and efficiently makes decisions on how to charge the battery without risking user safety or damage to the battery.

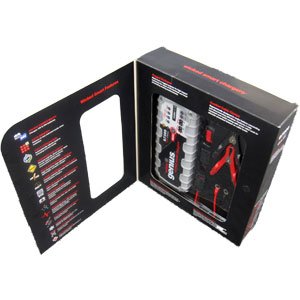

What's in the box?
- G7200 Charger
- Battery clamp connectors
- Eyelet Terminal Connectors
- Owner's manual and user guide (View PDF)
Wicked Smart Features:
- 12V/24V Compatibility
Charges 12V and 24V batteries
- Auto-memory
Returns to last selected mode when restarted
- Fully Interactive
Automatically adjusts itself to changing current needs
- Designed for Safety
Reverse polarity, short circuit, open circuit, spark proof, overheat, overcurrent, and overcharge
- Multiple Battery Chemistry
Safely chargers Wet, Gel, MF, and AGM batteries
- Extendable Connectors
Plug-n-play connectors for easy accessory changes
- HF/HE Switch Mode Design
High-frequency, high-efficiency for a lightweight, compact charger
- Rapid Charging Technology
Charges batteries 2X faster than traditional linear battery chargers
- Variable Input Compensated
100% full charge even with varying A/C input voltages
- Abnormality Protection
Automatically shuts "off" if charger remains in Bulk charge mode for an extended period of time
- Recovery Mode
Recovers deeply discharged & sulphated batteries with pulse charging
- Cold/AGM Mode
Optimized charge mode for cold weather or AGM batteries
- 16V Boost Mode
Helps recover deeply discharged or sulphated batteries
- 13.6V Supply Mode
Charge mode for maximizing battery capacity, reviving low voltage batteries & can act as a power supply
Charging Steps
- Step 1: Diagnostics
Checks the battery voltage to make sure battery connections are good and the battery is in a stable condition before beginning the charge process.
- Step 2: Recovery
Initializes the Recovery process, if needed, for deeply discharged or sulfated (desulfation) batteries by pulsing small amounts of current.
- Step 3: Soft Start
Begins Bulk charging process with a gentle (soft) charge.
- Step 4-7: Bulk
The Bulk charging process continues and returns 80% of the battery capacity. Indicated by the 25%, 50% and 75% CHARGE LEDs.
- Step 8: Absorption
Brings the charge level to 90%. The battery charger will deliver small amounts of current to provide a safe, efficient charge and limit battery gassing.
- Step 9: Trickle
Battery is fully charged and ready to use, indicated by the 100% CHARGE LED being a solid Green. In this Step, the battery charger will only deliver enough current to keep the battery full. If the battery tells the charger that more current is needed, the battery charger will switch to Maintenance.
- Step 10: Maintenance
Continuously monitors the battery voltage to determine if a Maintenance charge should be initiated. If the terminal voltage falls below 12.8V (12V) and 25.6V (24V), the charger will start the Maintenance cycle until voltage reaches 14.4V (12V) and 28.8V (24V) and then discontinues the charge cycle. The cycle between Trickle and Maintenance is repeated indefinitely to keep the battery at full charge, without overcharging. The battery charger can be left connected indefinitely.
- Step 11: 13.6V Supply
The 13.6V SUPPLY mode is used for low voltage batteries, maintenance charging or as a power supply.
- Step 12: 16V Boost
The 16V BOOST mode is used to recover battery capacity from a stratified (sulfated) battery by applying a specialized high 16.5V (17V Max) voltage to soften and melt down sulfate from the battery plates so that the material becomes usable again.
Technical Specifications:
- Input Voltage AC: 110-120VAC, 50-60Hz
- Working Voltage AC: 85-130 VAC, 50-60Hz
- Input Current: 2000mA RMS Max
- Efficiency: 85% Approx.
- Power: 150W Max
- Charging Voltage: 14.4/28.8V, 14.7/29.4V (Cold/AGM), 13.6V (Supply), 16.5V (Boost)
- Charging Current: 7200mA (12V), 3600mA (24V), 5000mA (Supply), 1500mA (Boost)
- Back Current Drain: <5mA
- Ripple: <2%
- Charger Type: 12 Step, Fully Automatic, Switch-Mode
- Type of Batteries: 12V & 24V Lead-Acid
- Battery Chemistries: Wet, Gel, MF & AGM
- Battery Capacity: 14-230Ah (12V), 14-120Ah (24V)
- Housing Protection: IP65
- Cooling: Natural Convection
- Noise Level: <50 dB
- Dimensions (L x W x H): 8.9 x 3.8 x 2.4 Inches
- Weight: 1.7 Pounds
|
