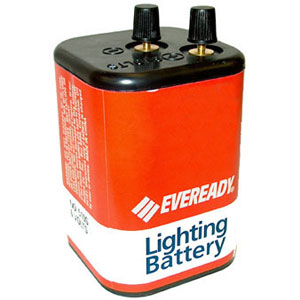

Product Specifications for Eveready 510S 6V Industrial Lighting Battery
|BM Part #:||EVR-510S|
|Warranty:||1 Year Factory Direct|
This 6 volt lantern battery is made with high quality parts and is guaranteed to meet or exceed the original equipment manufacturers specifications at a reduced price.
Procedure for switching from the Eveready 2744N socket type battery to the Eveready 510S screw terminal battery (Click here for a PDF version).
Parts needed: Two insulated ring tongue terminals for a number 10 stud.
Tools needed: Wire cutters, wire strippers, crimping tool (pliers)
Procedure: The plug on the alarm that attaches to the battery has a large post and a small post. The larger post is the positive connection. Cut the wire going to the larger post close to the plug. Strip about a quarter inch of the insulation from this wire and crimp on the insulated terminal. Attach this positive lead to the screw post on the 510S battery marked + . Cut the wire going to the smaller post close to the plug. Strip about a quarter inch of the insulation from this wire and crimp on the insulated terminal. Attach this negative lead to the screw post on the 510S battery marked - . You may wish to label the wires with polarity markings (using masking tape) for future battery changes.
This battery is also a replacement for:
Eveready 2744N, ANSI/NEDA 915, Duracell PC915, IEC 4R25, Rayovac 945R4
