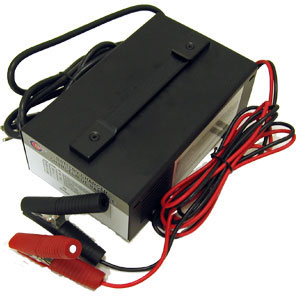

12 Volt - 15 Amp: Five-stage microprocessor based charger for use in applications from charging to maintenance for motive power batteries commonly used in; Industrial equipment, golf carts, lifts, tugs, among others. GENERAL SPECIFICATIONS - OUTPUT: 12 Volts / 15 Amp DC
- INPUT: 120 Volts AC, 3.4 Amps, 60 Hz Input Also available in 220 Volts AC, 50 Hz
MECHANICAL SPECIFICATIONS - DIMENSIONS: W 9 1/16" (10 11/16" with flange) x D 10 1/4" x H 7 1/4" 23cm (27cm) x 26cm x 18.5cm
- WEIGHT: 20.24 lbs.; 9.2kg (Approx.)
FEATURES - 4 LED DISPLAY: Indicates power, charge mode and if weak battery is present
- BATTERY TYPES: Large capacity Lead-acid batteries (+100 Ampere / Hours)
- BACKUP PROTECTION: Reverse battery, short circuit, input overload, and over temperature. Power LED flashes in reverse polarity or short circuit conditions.
- QUALIFICATION TEST: Test for shorted cells, sulfated battery and high internal resistance before charging batteries.
- CONSTANT CURRENT MODE:Charges at "Constant current" until the battery voltage reaches the "Equalization stage" and then switches to the "Constant voltage mode".
- CONSTANT VOLTAGE MODE:Charges at "Constant Voltage" until the battery reaches 100% charge and then switches to a reduced constant voltage charge level labeled as "Float mode".
- WEAK BATTERY INDICATOR: Red LED labeled "weak" indicates battery is weak 5 minutes after charge.
- AGENCY: UL & CuL available upon request
- NOTE: Regulating Parameters, Safety Timer Values, Charge Algorithms, Output Lead Assemblies and Accessories can be altered, at the factory, to suit your particular application and requirements. Call today to receive a personalized quote and/or to speak with one of our representatives who would be happy to help you with your application questions.
- 1 Year Warranty
|
