This battery pack charger works well with NiCd or NiMH battery packs ranging
from 2.4V, 4.8V, 6V, 7.2V, 8.4V, 9.6V, 12V.
(Important Note: This charger will not work with 3.6 volt or 10.8 volt battery packs.)
Specifications:
- Charging Currents: Selectable 300mA or
600mA

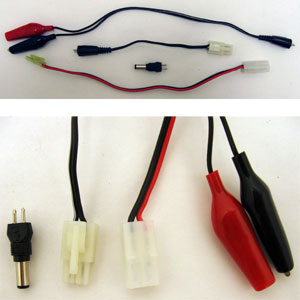

- Termination: DC Plug, 2 Clamps, Tamiya
Plug, Mini-Tamiya
Plug (Optional)
- Charging Voltage: 2.4V, 4.8V, 6V, 7.2V,
8.4V, 9.6V, 12V (Selectable)
- Discharge Function: Yellow Button
- PRI: 120V ~60Hz 21W

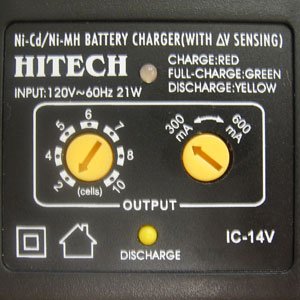

Automatic NiCd/NiM battery charger for packs with 2 to 10 cells
This product has full range detection: Automatic battery voltage detection, safety timer, and maximum voltage. The battery pack charger can charge batteries with 2 cells up to batteries with 10 cells. The IC-14V charger can discharge batteries in order to prevent building memory causing the battery to not reach full charge. It protects against overcharging and has a built-in poly-switch for reverse polarity, short circuit, and overload protections.
|
